A belt actuator tooth jump is most credible when a fast axis develops a sudden, persistent carriage-position offset during acceleration, deceleration, or reversal while the relevant motor-side position feedback remains repeatable. The diagnosis should not begin by changing belt tension. First establish exactly where the position loss occurs, determine whether the feedback position or only the mechanical output has shifted, and then inspect the coupling, pulley, timing belt, tooth engagement, alignment, contamination, and visible wear. A repeatable high-load trigger combined with a motor-to-carriage position mismatch and matching mechanical evidence is much stronger than any single symptom.

Diagnostic rule: treat suspected tooth jump as a mechanical position-change event that must be proven. If the servo-side position repeats but an independent carriage reference changes, investigate the transmission path. If position feedback itself becomes unstable, drops out, or reports a feedback-related fault, investigate the feedback and servo system before assigning the problem to the belt.

1. Confirm That the Position Loss Looks Like True Tooth Jump

Timing belt tooth skipping occurs when the belt temporarily loses correct engagement with the pulley and re-engages at a different tooth relationship. In a belt-driven servo axis, the practical result can be a carriage that no longer corresponds to the mechanical position expected from the motor-side reference.

The most useful symptom is not simply “the axis is inaccurate.” Look for a step change that appears immediately after a demanding part of the cycle. A typical investigation starts when the machine homes normally, runs several correct cycles, then loses process position after a rapid launch, hard deceleration, or direction reversal.

True belt tooth skipping becomes more plausible when several observations occur together:

• The position loss appears during peak acceleration, deceleration, or reversal rather than during steady travel.

• The physical carriage offset remains after the demanding motion segment has finished.

• The fault becomes easier to reproduce with higher payload or more aggressive acceleration.

• A brief mechanical sound or vibration occurs at the same motion point.

• Inspection reveals tooth polishing, deformation, debris, tracking marks, pulley witness marks, or other localized evidence.

If the actual belt pitch is known from verified technical documentation, compare the measured carriage offset with the pitch and its multiples. A position change close to one or several tooth pitches can support the hypothesis, but it is not proof by itself. Coupling slip, pulley-to-shaft movement, or another mechanical interface can also create a sudden position loss in a belt-driven axis symptom.

Do not erase the evidence too early: immediately tightening the belt, changing servo gains, lowering acceleration, or cleaning the pulley may suppress the symptom while making the original cause harder to identify. Record the event first.

2. Separate Belt Tooth Skipping From Encoder, Coupling and Servo-Following Faults

The fastest diagnostic question is: which relationship changed? Compare the commanded position, actual feedback position, physical carriage location, coupling relationship, and pulley relationship immediately before and after the event.

A slipping motor coupling or pulley-to-shaft connection can imitate a timing belt actuator fault very closely. Where the design permits safe access, place fine witness marks across accessible mating parts before reproducing the event. If the marks move relative to each other, the investigation should stay with that interface rather than moving directly to the belt teeth.

If the coupling and pulley witness marks remain aligned, the motor-side feedback returns to the expected value, but the carriage has physically shifted, the belt path deserves closer inspection.

Engineers already working with this product family can keep the    JTG belt driven linear actuator    page available as the product reference while the fault is being documented. The product page should support the investigation, not replace it.

Feedback location matters: a motor-mounted encoder reports motor position. A separate linear encoder attached to the moving carriage observes the output more directly. The meaning of “the encoder position is correct” therefore depends on where the feedback device is installed.

3. Record the Exact Motion Point Before Changing the Machine

Intermittent faults become much easier to diagnose when every event is tied to a precise operating condition. Before changing belt settings, motion parameters, servo gains, or mechanical alignment, capture a fault record that another engineer could reproduce.

Why acceleration deserves special attention

The same axis can reach an identical top speed with very different peak transmission loads depending on how quickly it accelerates. Inertial force rises directly with moving mass and acceleration, which explains why a high acceleration belt actuator can appear normal during slow commissioning moves but lose position in production.

Illustrative calculation

F = m × a = 20 kg × 15 m/s² = 300 N

In this illustrative example, a 20 kg moving assembly accelerating at 15 m/s² creates 300 N of inertial force before friction, cable resistance, process forces, or other dynamic loads are added.

T = F × r = 300 N × 0.04 m = 12 N·m

If the effective pulley pitch radius were illustratively 40 mm, the corresponding inertial torque contribution would be 12 N·m. These values are examples only and are not SAHO product limits. Actual allowable torque, tooth loading, pulley geometry, belt condition, safety margin, and acceleration capability require engineering confirmation for the specific axis.

For broader machine-layout context—including moving mass, gantry architecture, acceleration, and integration conditions—review    belt actuator applications and integration.

4. Inspect Tooth Engagement, Pulley Alignment, Contamination and Belt Damage

Once the fault data points toward a mechanical position change, inspect the transmission in a fixed order. The objective is to preserve evidence and identify the mechanism of the slip, not to turn the investigation into routine belt maintenance.

Pulley alignment is especially relevant when the fault is directional. Angular or lateral misalignment can change how load is distributed across the belt width, and a belt that looks centered while stationary may track differently under acceleration or reversal.

Contamination should also be treated as diagnostic evidence rather than simply a cleaning issue. If debris appears at one pulley or at a specific location associated with the fault, record that location. The distribution of contamination can help explain why belt tooth skipping occurs only at one part of the cycle.

Important: photograph the belt, pulley grooves, tracking condition, contamination, and witness marks before cleaning, retensioning, replacing parts, or disassembling the drive. Those observations may be the best evidence of the original fault.

5. Run Controlled Verification Tests Without Masking the Root Cause

The purpose of verification is to change one stress factor at a time and observe whether the fault follows it. Testing should be performed under the machine builder's normal safety procedures, with personnel clear of the moving axis and sufficient clearance for the commanded motion.

1. Save the original state. Record the initial motion parameters, servo settings, payload condition, and physical carriage reference before making changes.

2. Repeat the same motion at reduced acceleration. Keep other conditions as similar as practical. If the fault disappears, the mechanism is load-sensitive, but tooth jump is not yet proven.

3. Test the opposite direction. A direction-dependent result can help expose alignment, tracking, load-side, or coupling asymmetry.

4. Change payload only when it is safe and relevant. If the same profile becomes more fault-prone with increased moving mass, dynamic load is part of the diagnosis.

5. Log command, feedback and mechanical position together. Compare commanded position, actual feedback, following error, torque/current trend, alarms, and the final physical carriage location after every test.

6. Recheck witness marks after a reproduced event. Confirm whether the coupling or pulley relationship has changed.

7. Inspect the belt path again before further adjustment. New marks created during a controlled reproduction can be more informative than old general wear.

This sequence is particularly useful when engineers need to distinguish belt tooth jump from a servo or feedback fault. Do not change acceleration, payload, servo tuning, belt condition, and mechanical alignment simultaneously. If four variables change and the fault disappears, the machine may run again but the root cause remains unknown.

Reduced acceleration is a diagnostic tool, not automatically the final corrective action. A lower value may simply move the axis below the threshold at which poor engagement, contamination, tooth damage, pulley movement, or another mechanical weakness becomes visible.

Keep this troubleshooting task separate from routine maintenance: tension is part of the mechanical condition, but this procedure is intended to identify why position was lost. Use the applicable technical documentation or request engineering confirmation for any product-specific adjustment or acceptance value.

6. Use the Symptom-to-Check Matrix to Decide What to Test Next

A useful diagnostic matrix does not label every position error as tooth jump. It shows which observation should change the next check.

The strongest diagnosis usually combines several observations. For example, a reversal-related fault becomes much more persuasive when motor feedback remains repeatable, the carriage position changes, coupling witness marks stay aligned, and fresh belt or pulley evidence appears after the same motion.

7. Decide Whether to Correct the Fault or Review the Axis Application

Once the fault mechanism is understood, the next action depends on why the event occurred. If the investigation identifies contamination, damaged belt teeth, pulley movement, coupling slip, alignment evidence, or another localized mechanical defect, correct and verify that fault using the applicable service information.

The situation is different when no localized defect explains the event and the fault repeatedly returns at the payload and acceleration required by production. At that point, simply reducing acceleration may hide the symptom without answering whether the axis and application conditions are correctly matched.

Do not choose a different actuator from the symptom alone. First decide whether the existing axis has a correctable fault or whether the required operating point needs a new application review. Product-specific load, acceleration, belt, pulley, environmental, and configuration limits require engineering confirmation.

8. Review the JTG Series Only When the Application Conditions Justify It

After the diagnostic work is complete, the JTG Series becomes relevant only when the machine already uses a JTG axis or when a new belt-driven axis must be reviewed for a defined motion profile and operating environment. The point of this step is not to replace troubleshooting with a product recommendation. It is to carry the verified fault evidence into the product discussion.

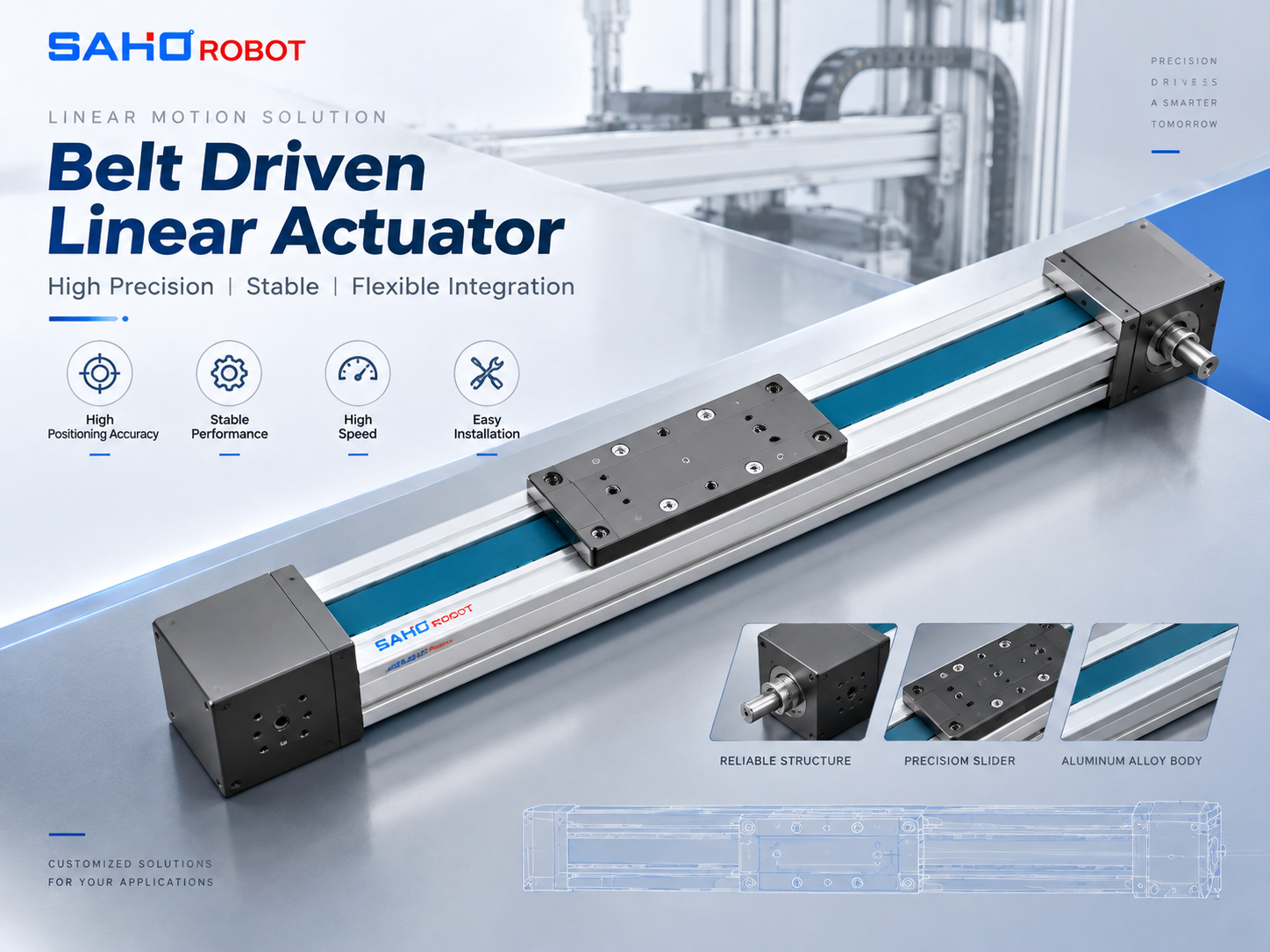

JTG Series Belt Driven Linear Actuator                     JTG100 is shown as a representative product image from the JTG family. Final model selection should be based on the required payload, stroke, speed, acceleration, installation condition, operating environment, motor arrangement, and the fault evidence collected above.                    View JTG Series

What to confirm before discussing a JTG configuration

The useful purchasing question is not “Which JTG model is bigger?” It is “What operating condition must the axis achieve after the fault mechanism has been removed?” That keeps procurement and engineering focused on the real machine requirement.

• Required motion: stroke, travel distance, velocity, acceleration, deceleration, and cycle pattern.

• Moving condition: payload, tooling, carriage-mounted equipment, cable or hose drag, and important changes between product variants.

• Installation: axis orientation, motor arrangement, available machine space, and surrounding mechanical interfaces.

• Environment: document dust, contamination, particles, splash, or other conditions that affect the axis selection.

• Fault evidence: measured position loss, servo traces, alarms, pulley and belt photos, and witness-mark results.

Selection boundary: if the position loss was caused by a loose coupling, damaged transmission component, feedback fault, or incorrect mechanical assembly, changing to another JTG model is not the first engineering action. Correct the identified fault first, then review axis suitability against the production requirement.

9. Prepare the Fault Package Before Contacting SAHO

A useful engineering inquiry should make it possible to reconstruct the event without first asking for basic operating information. Instead of writing only “the belt slips during acceleration,” send the operating condition, the measured position change, and the mechanical evidence together.

For gantry and Cartesian robot projects where the belt axis also carries another axis, cable chain, tooling, or cross beam, continue with    Belt Driven Linear Module for Gantry and Cartesian Robot Systems.

For packaging and transfer-machine context, review    Belt Linear Actuator for Packaging and Transfer Systems.

Common Questions About Belt Actuator Tooth Jump

Turn the Diagnosis Into the Right Engineering Next Step

A credible belt actuator tooth jump diagnosis connects three things: the operating condition that triggers the fault, a measurable change between feedback and physical carriage position, and mechanical evidence in the transmission. Once those relationships are clear, the next step is also clearer: correct a confirmed local fault, or review the complete axis application if the required production condition remains the limiting factor.

For a faster engineering review: prepare the actuator model, stroke, payload, velocity, acceleration, installation condition, servo information, measured position loss, alarm record, feedback traces, witness-mark results, and belt/pulley photos. If the application requirement has changed, include the new production cycle as well.
