JTS100

Ball Screw Drive Actuators / Clean Room

PDF2D3D

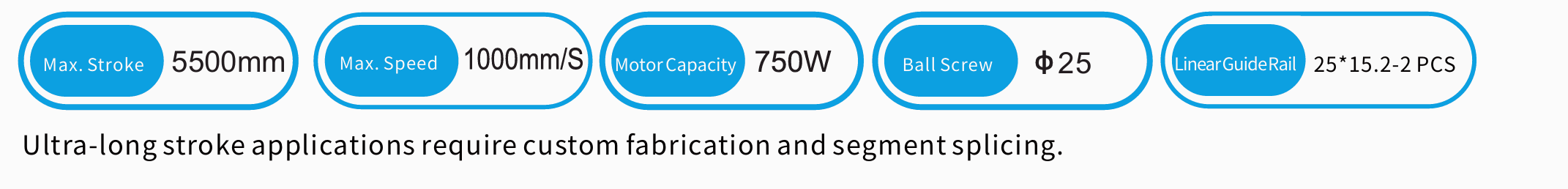

Features

Body width: 100MM

Position repeatability accuracy: ± 0.02MM

Maximum travel: 5000MM

Maximum load: 300KG

  • Product Description
  • Model Number
  • Basic Style
  • Load torque table
  • Size Chart
Basic Style

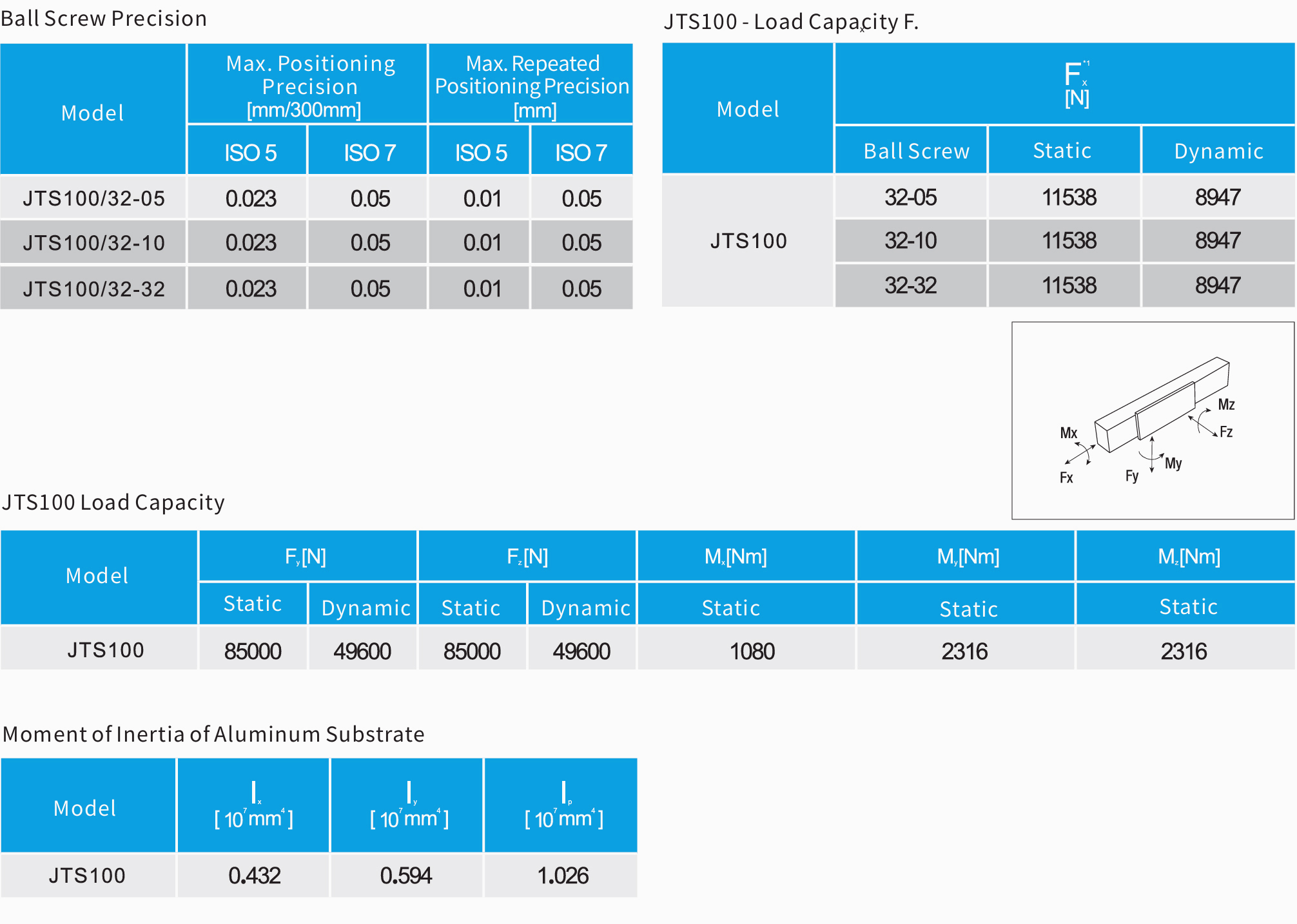

Load torque table

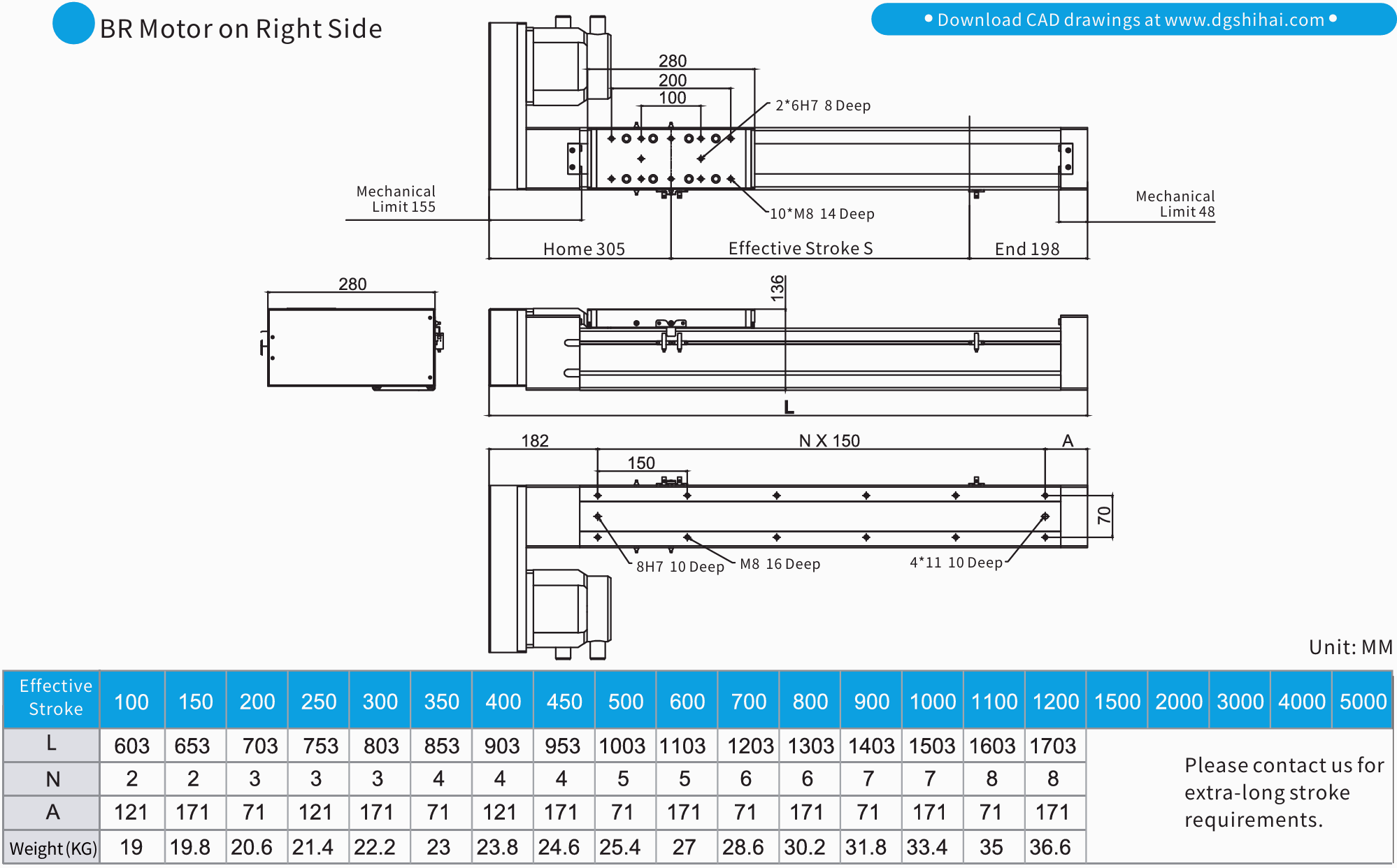

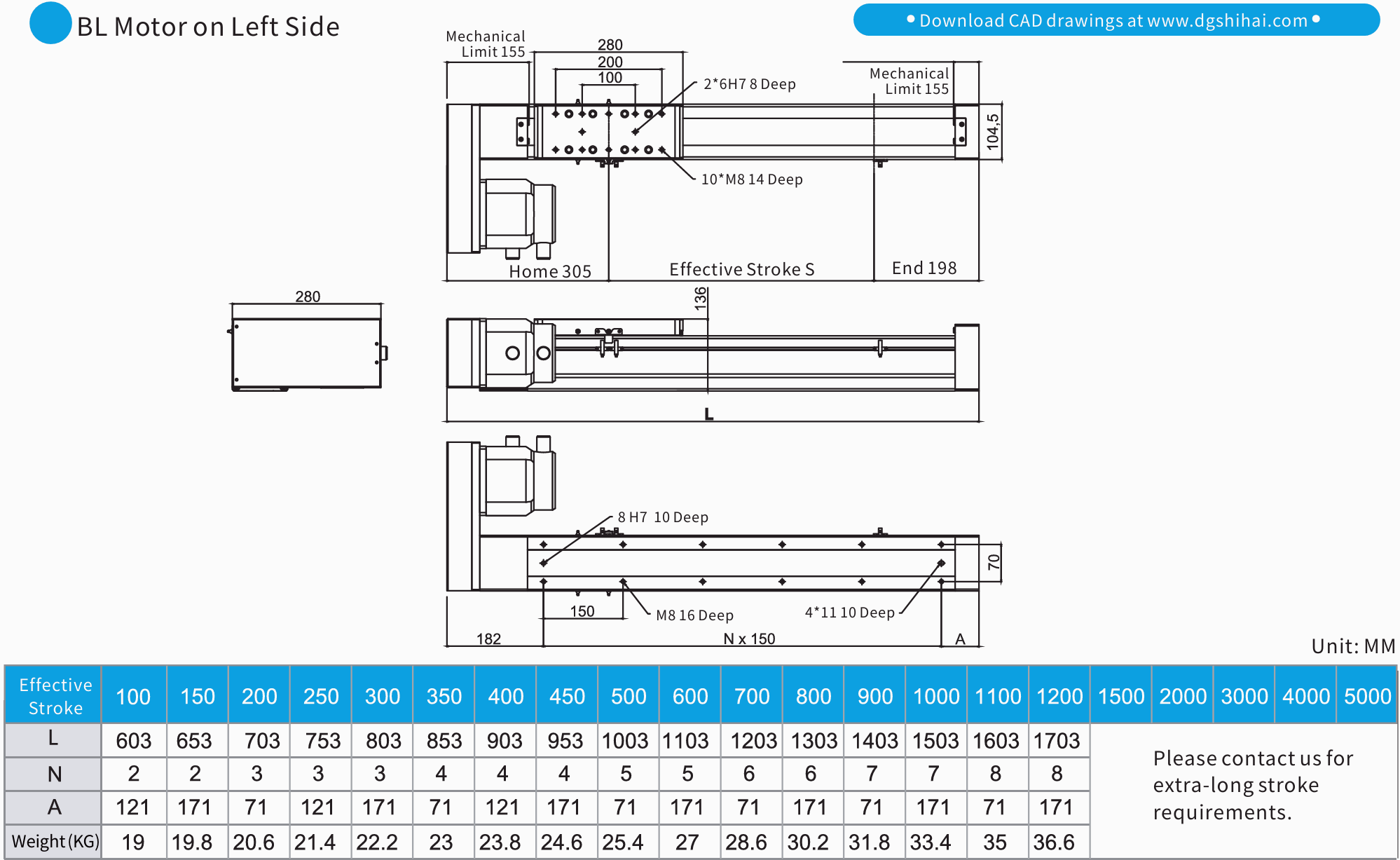

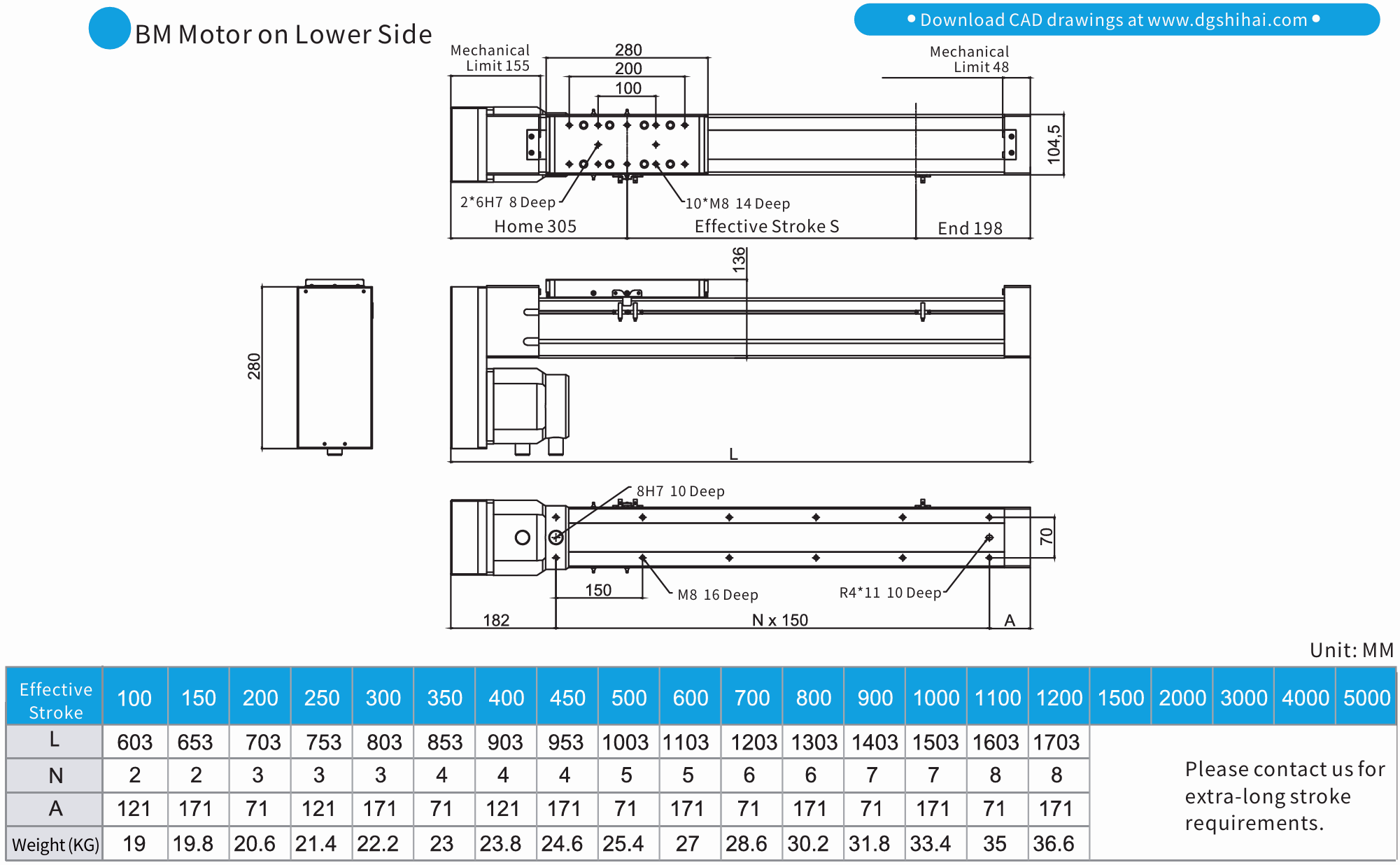

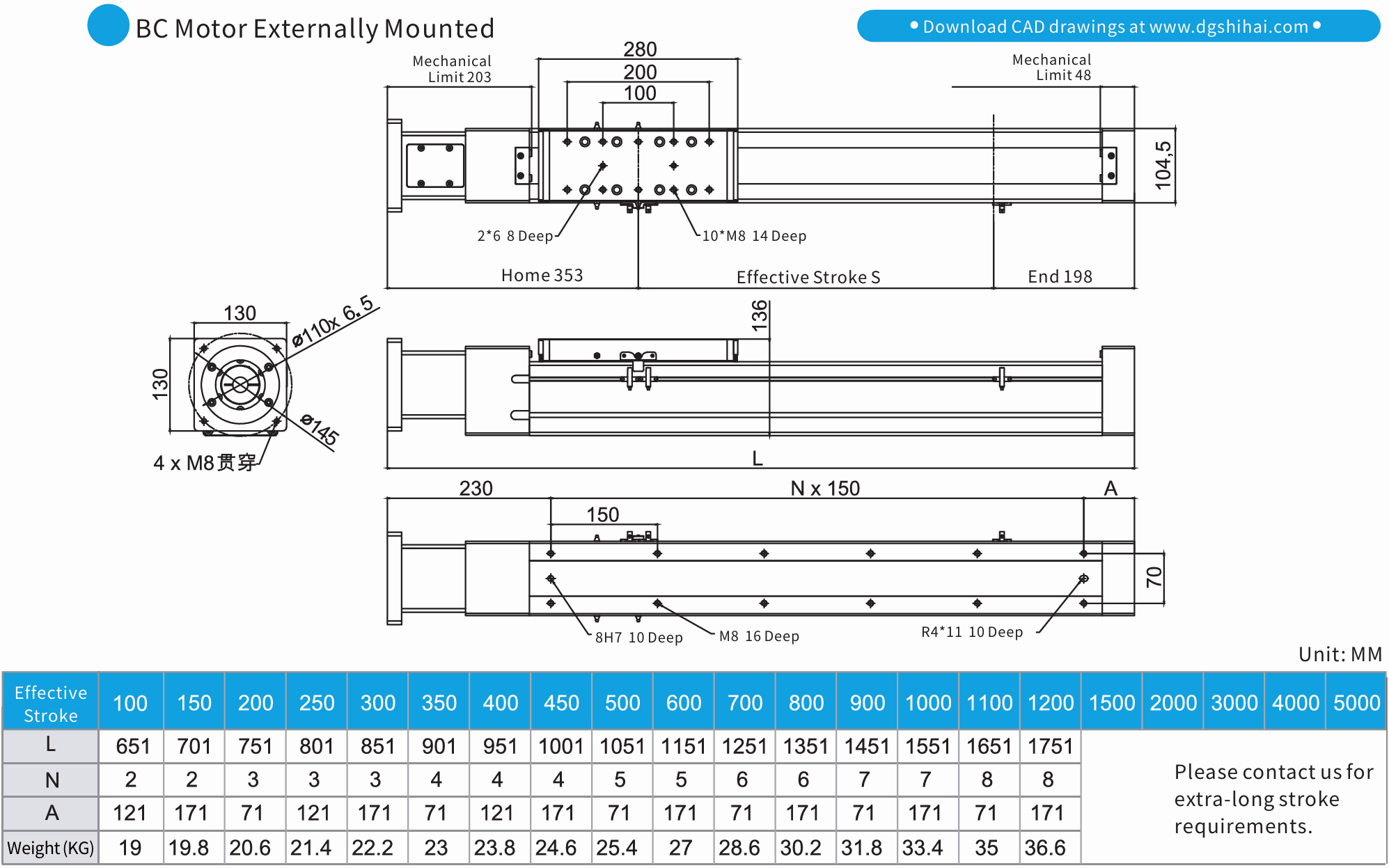

Size Chart
