High-performance linear motor solutions providing precision motion control and exceptional reliability for various industrial applications

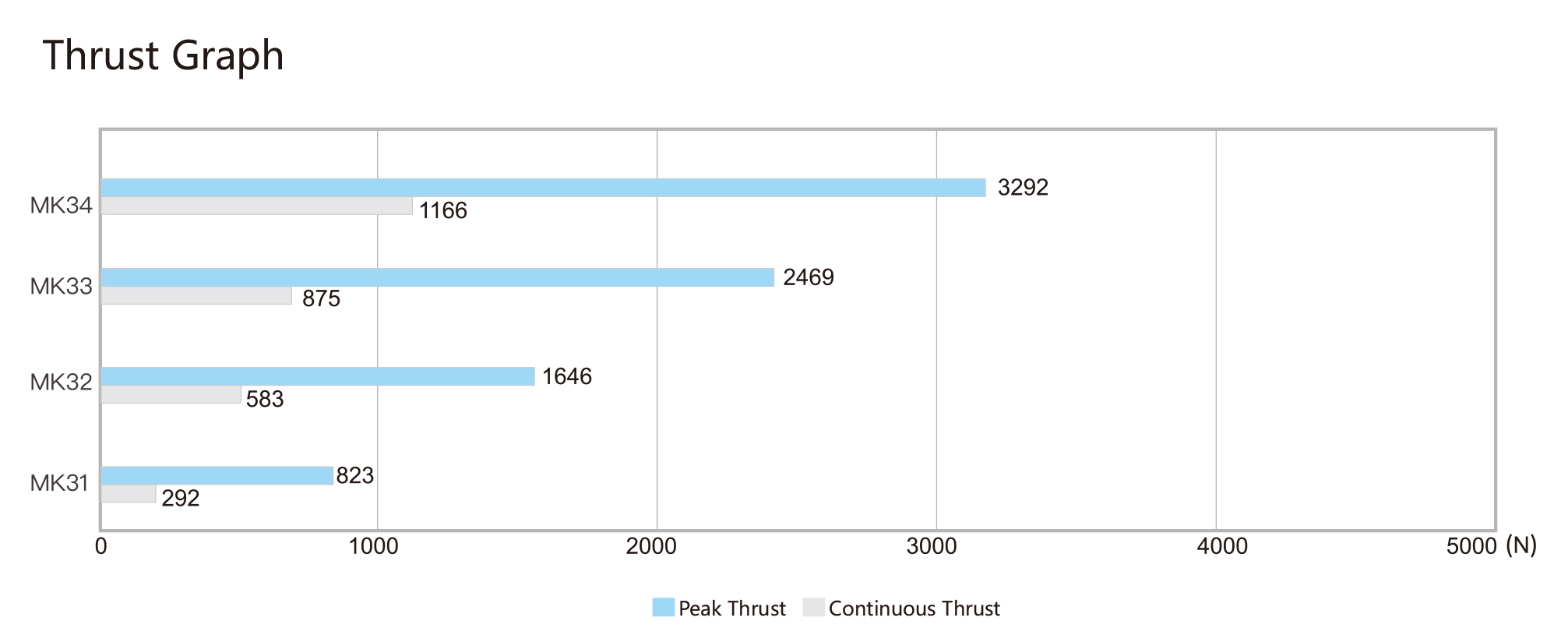

Continuous thrust: 292N-1166N
Peak thrust: 823N-3292N

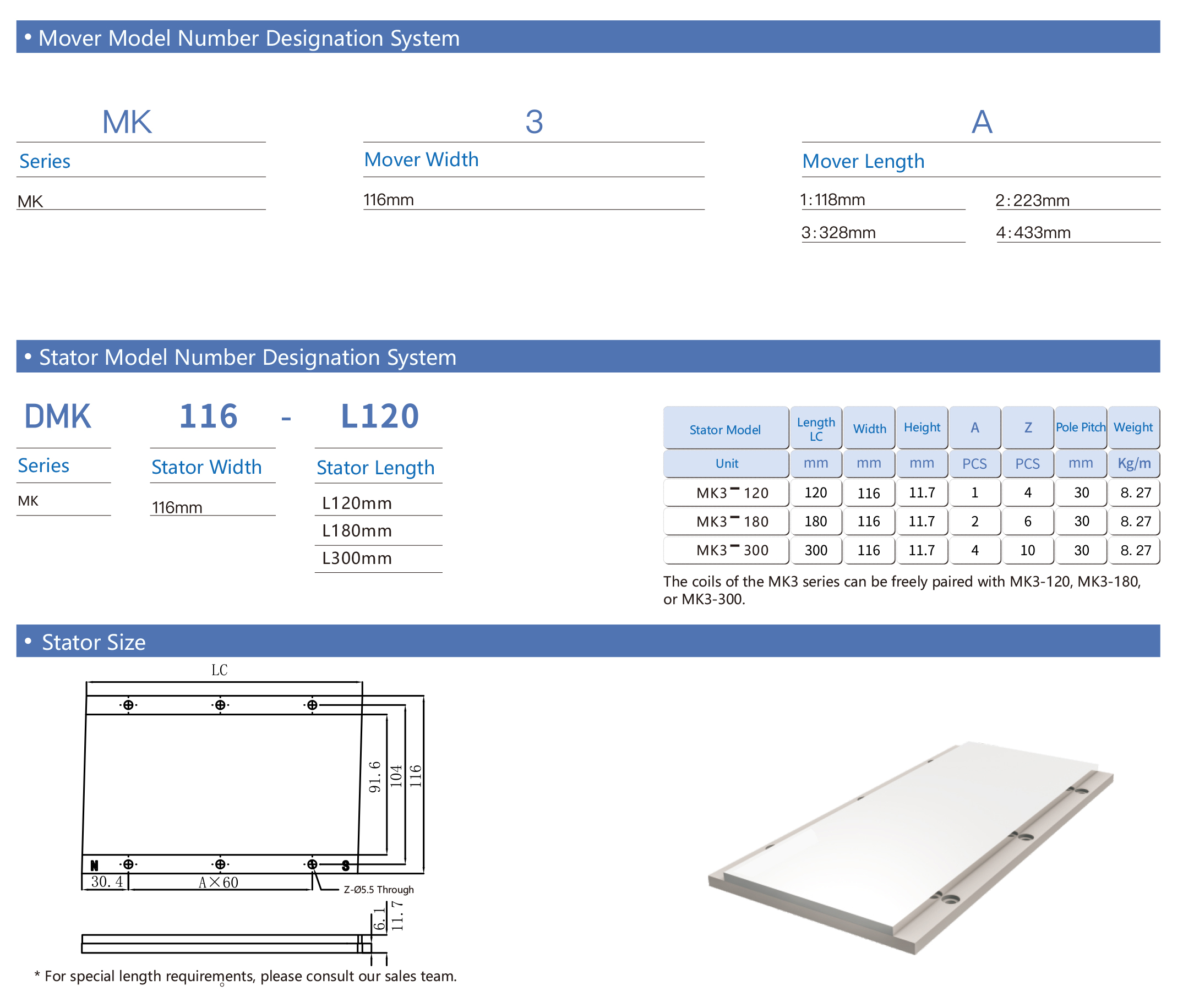

Dynamic wide seat: 116mm

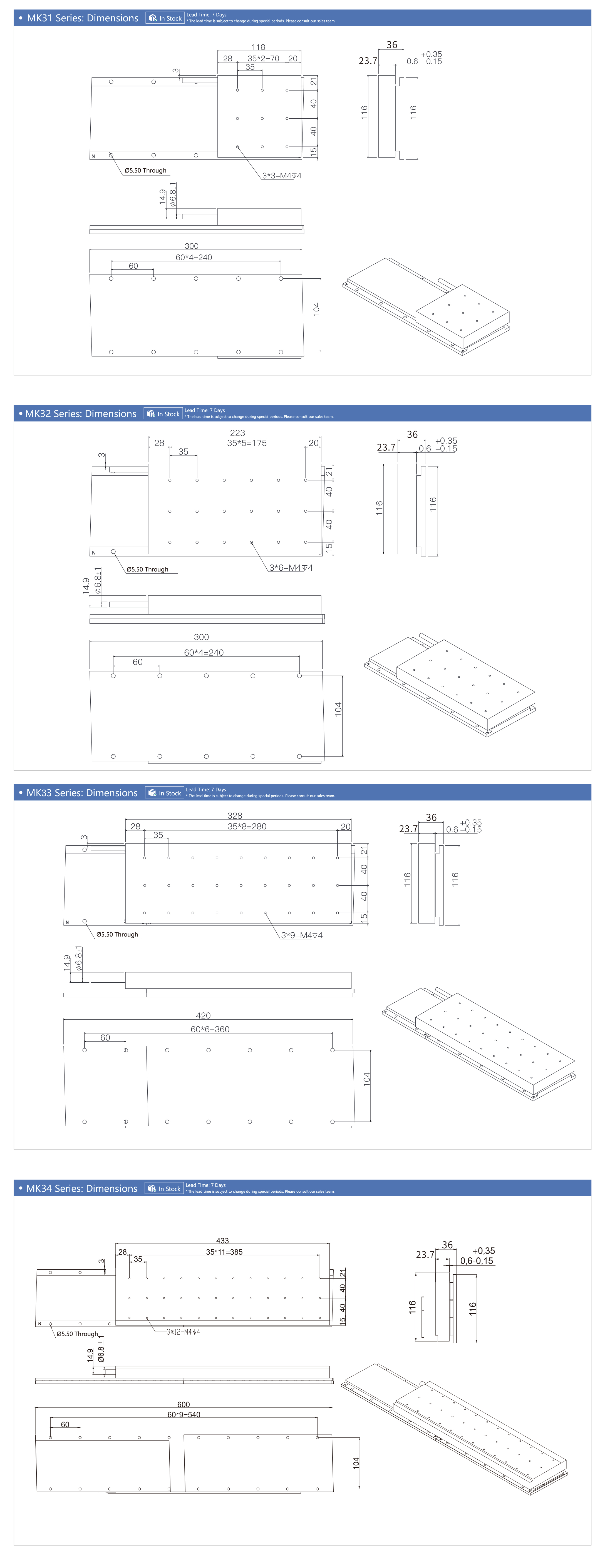

Length of mover: MK31:118mm/MK32:223mm/MK33:328mm/MK34:433mm
Stator width: 116mm
Stator length: L120mm/L180mm/L300mm
