High-performance linear motor solutions providing precision motion control and exceptional reliability for various industrial applications

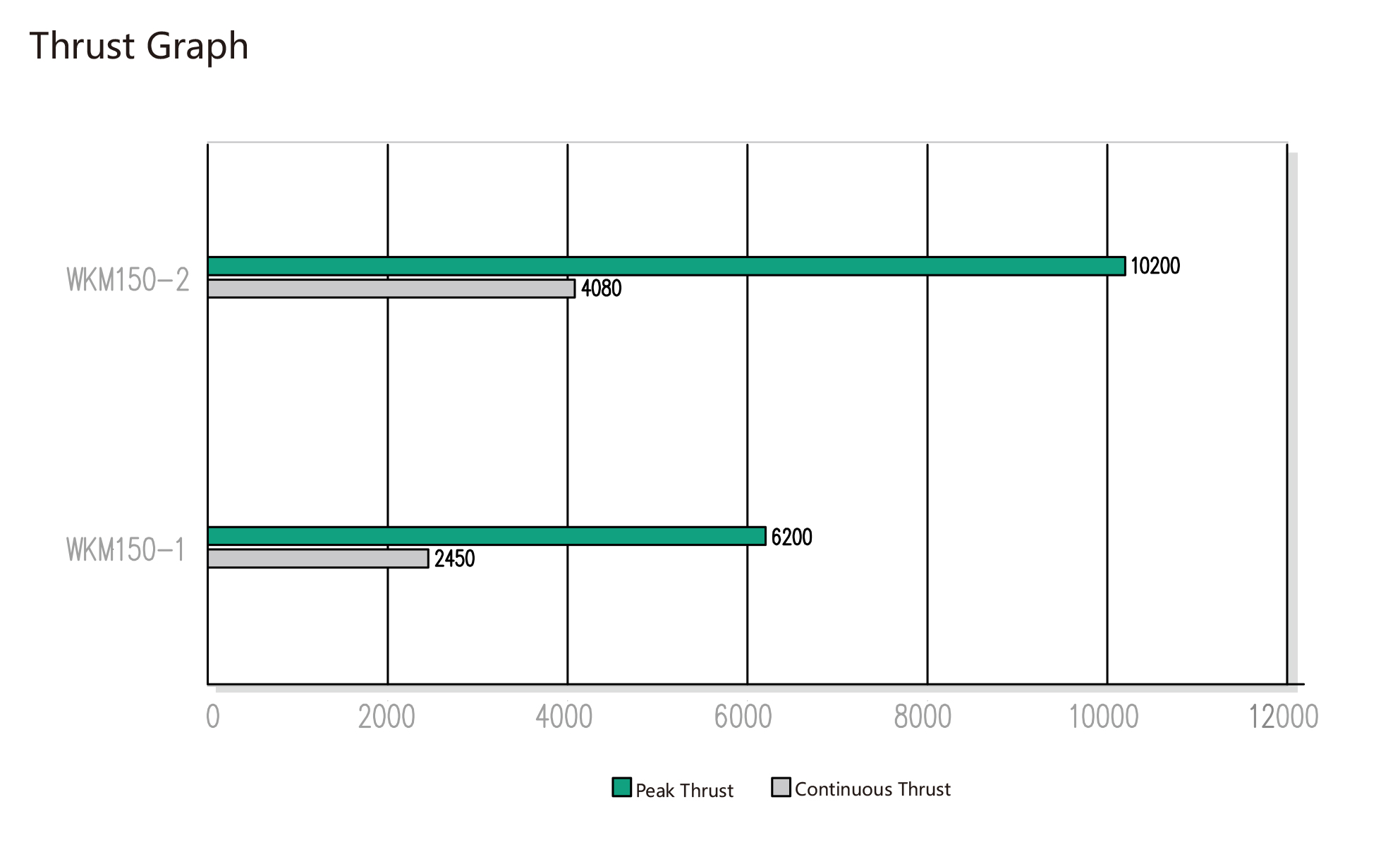

Continuous thrust:1600N~4080N
Peak thrust:3520N~10200N

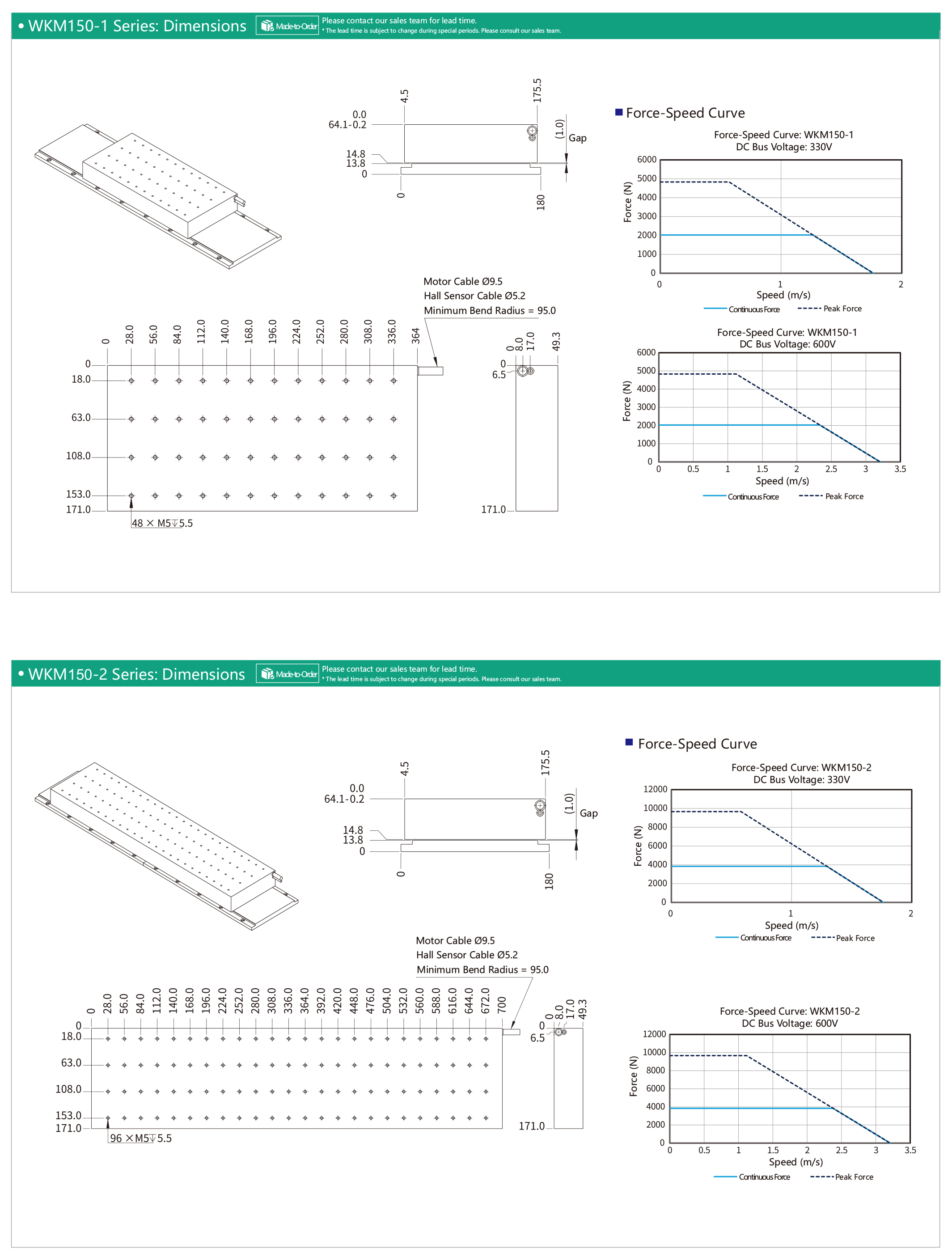

Motive width:171mm
Motor length:D:364mm/H:700mm

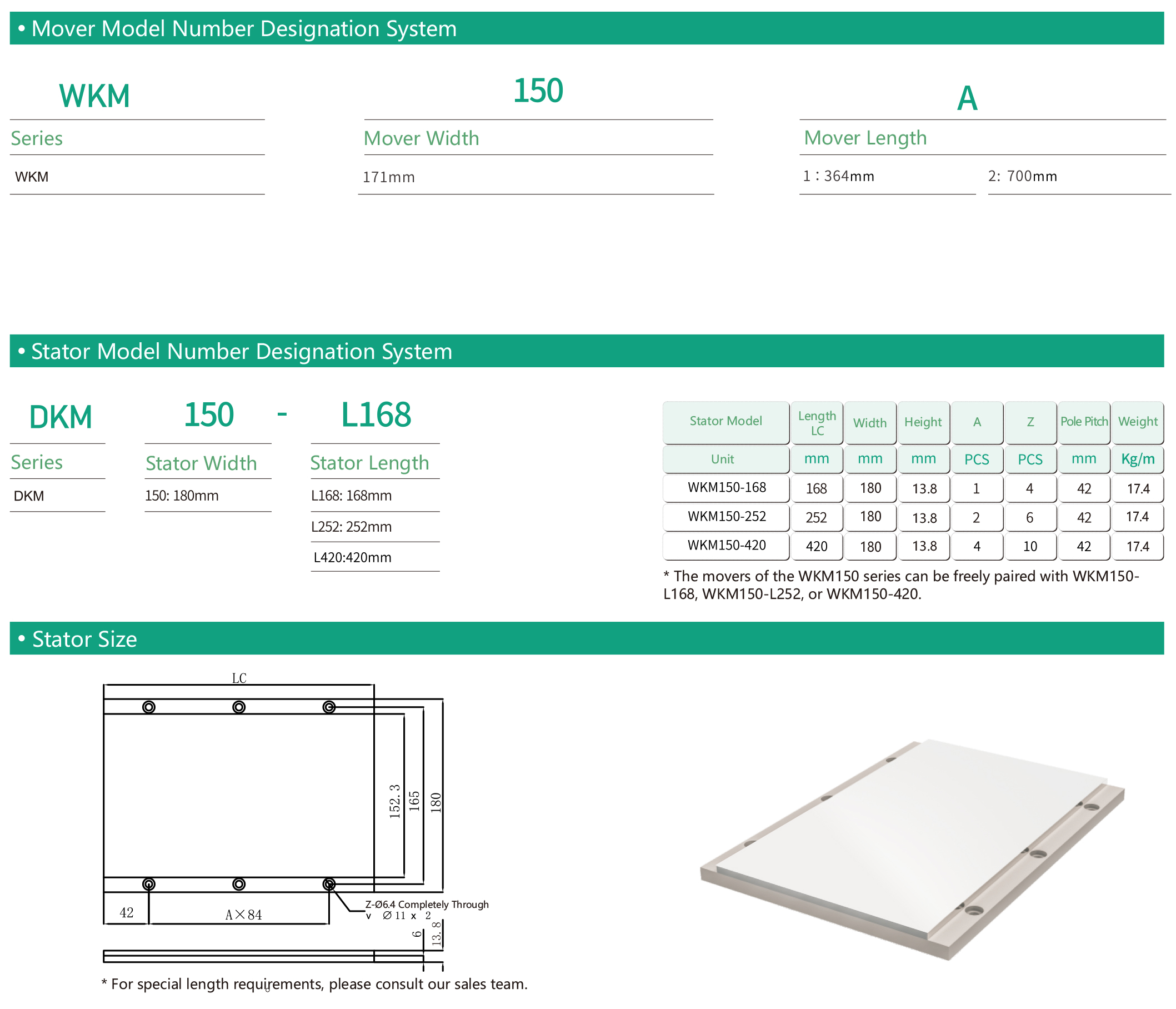

Stator width:150:180mm
Stator length:168mm/252mm/420mm
