High-performance linear motor solutions providing precision motion control and exceptional reliability for various industrial applications

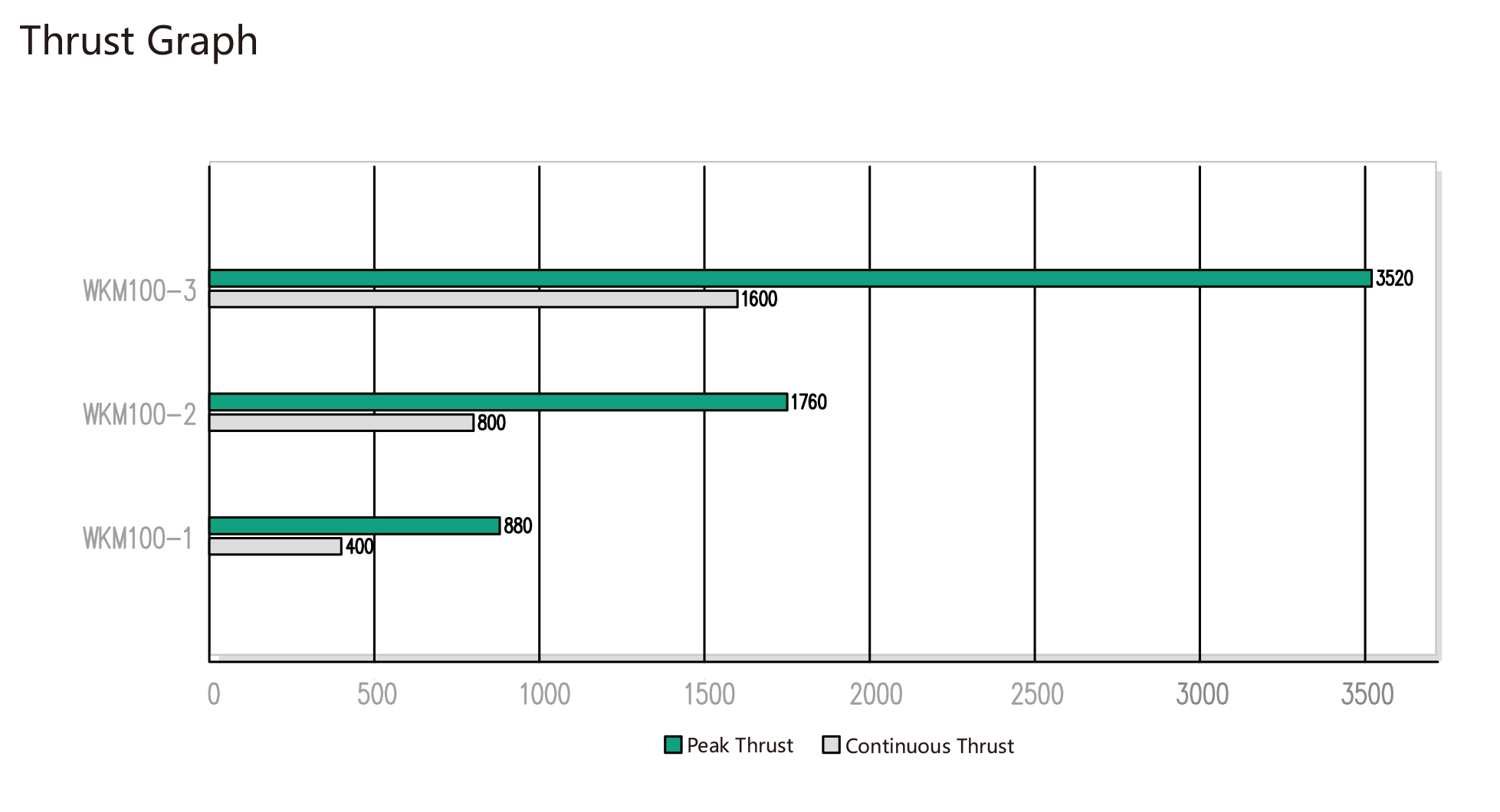

Continuous thrust:400N~1600N
Peak thrust:880N~3520N
Motive width:121mm
Motor length:112mm/196mm/364mm

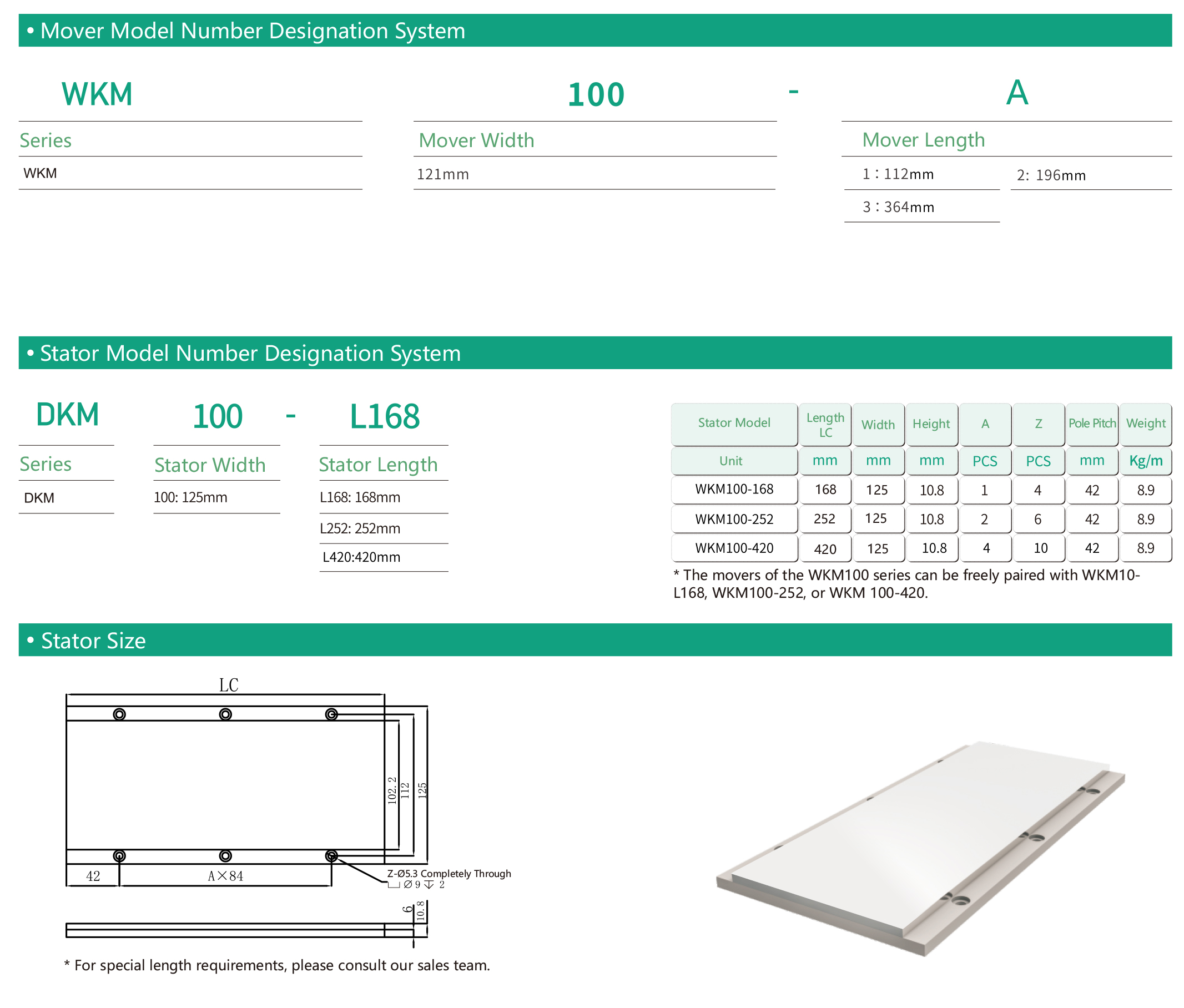

Stator width:100:125mm
Stator length:168mm/252mm/420mm
