High-performance linear motor solutions providing precision motion control and exceptional reliability for various industrial applications

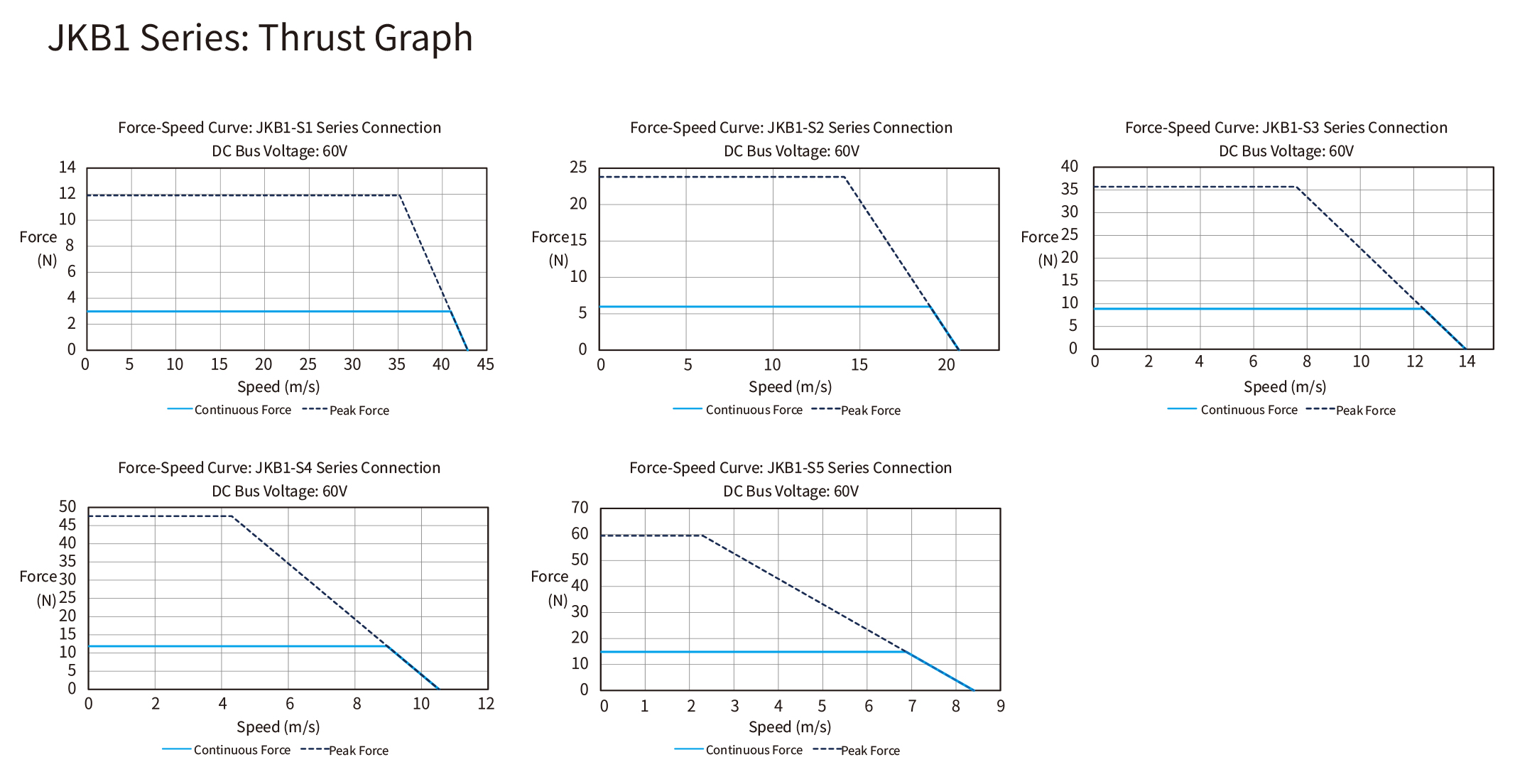

Continuous thrust: 3N-14.9N
Peak thrust: 11.9N-59.9N

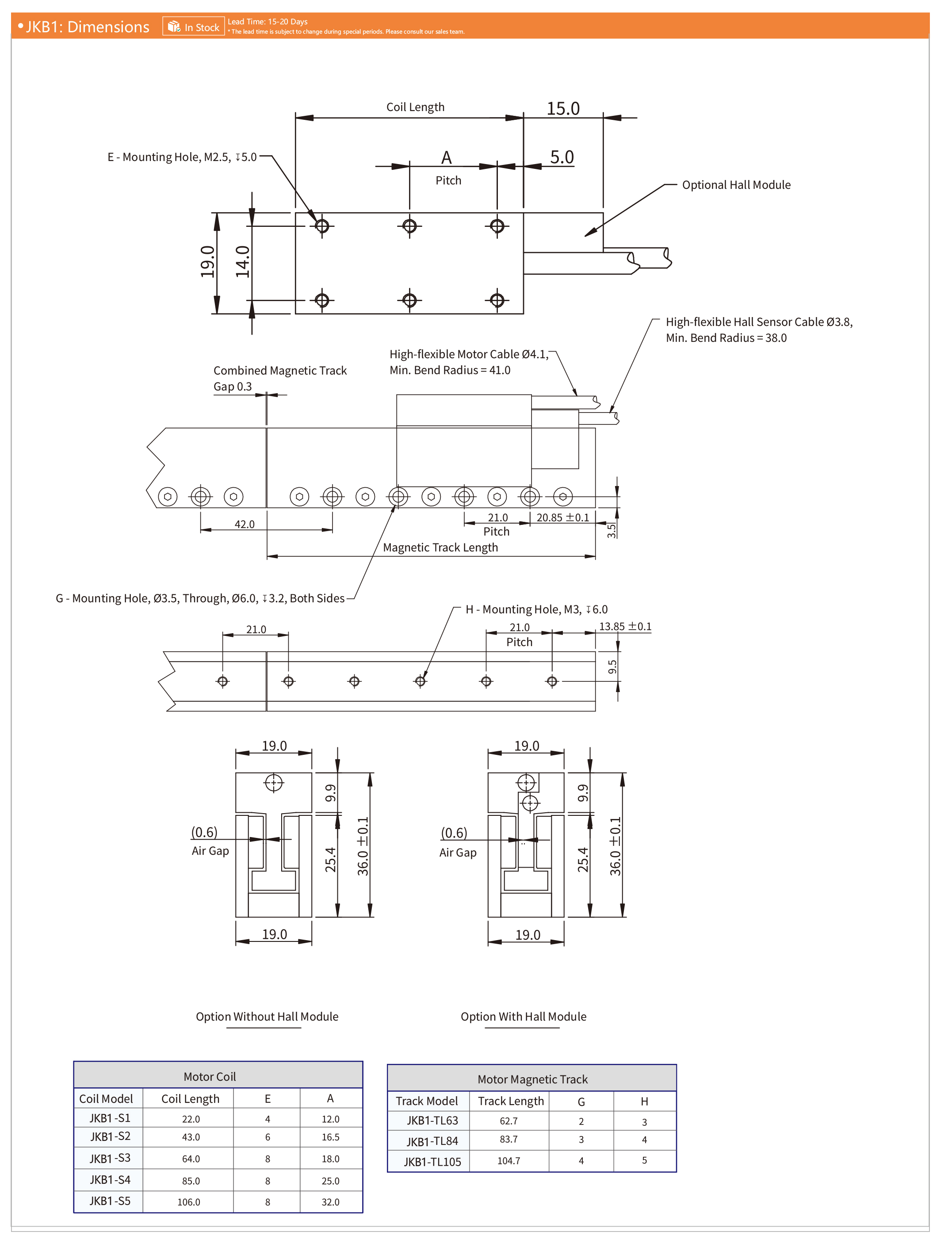

Rotor length: 1:22/2:43/3:64/4:85/5:106
Stator length: 63/84/105
