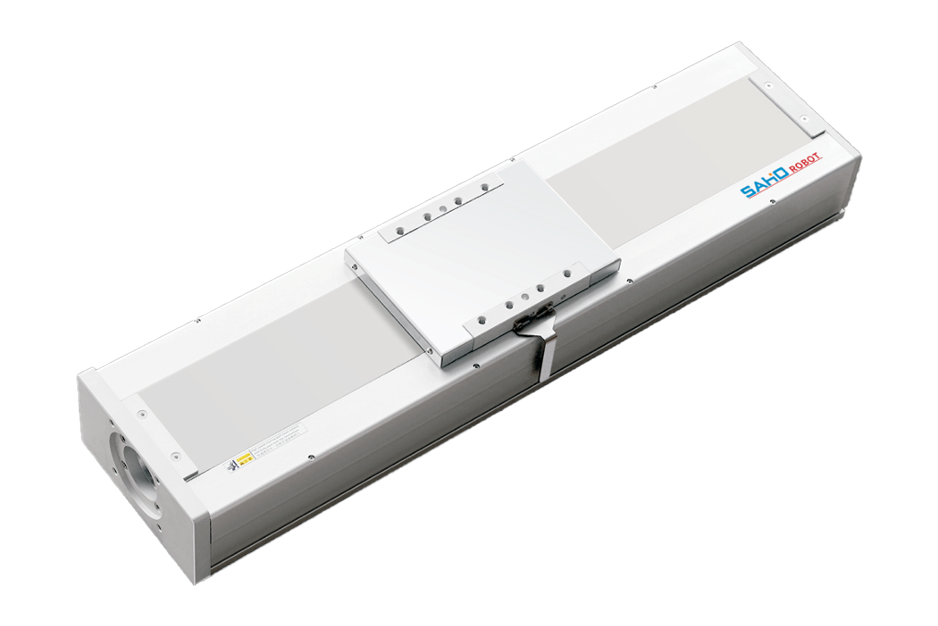

MSDM210

European Standard Ball Screw Drive Series

PDF2D3D

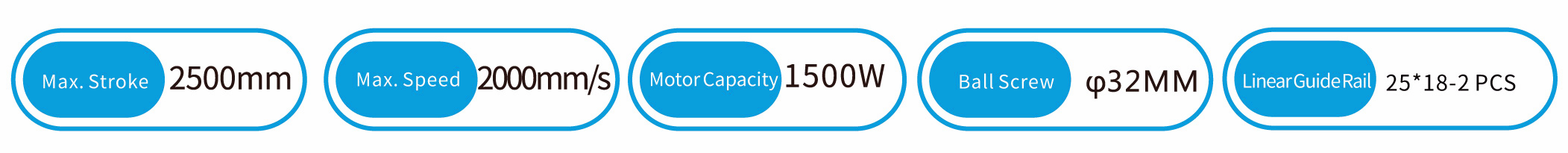

Features

Body Width: 210mm

Max. Stroke: 2500mm

Maximum 200kg

  • Product Description
  • Model Number
  • Basic Style
  • Load torque table
  • Size Chart

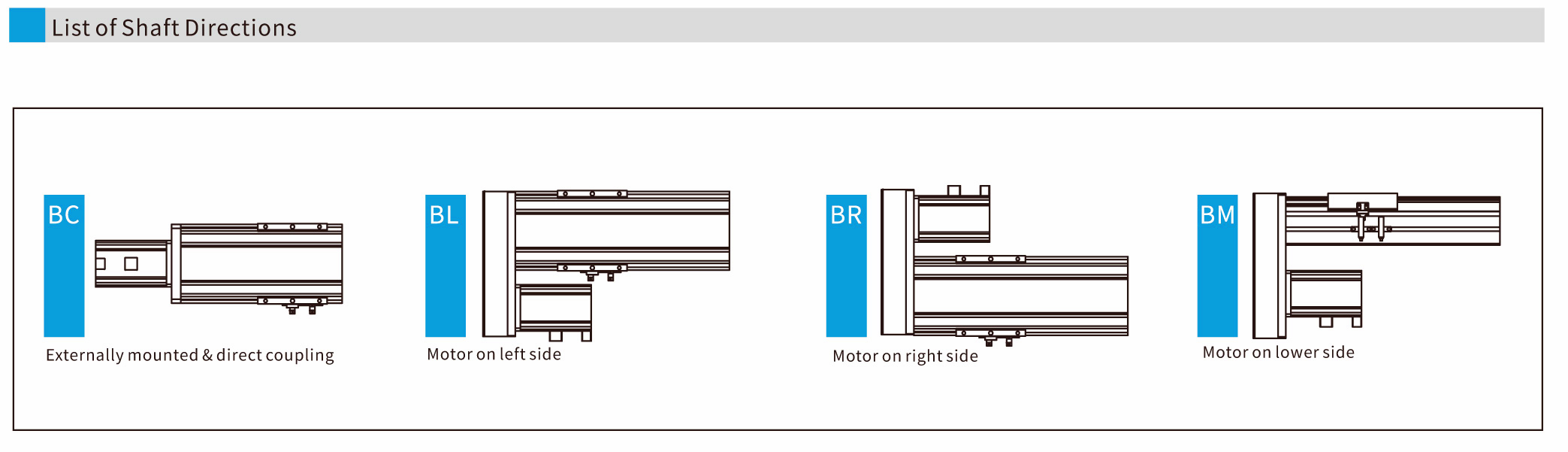

Model Number

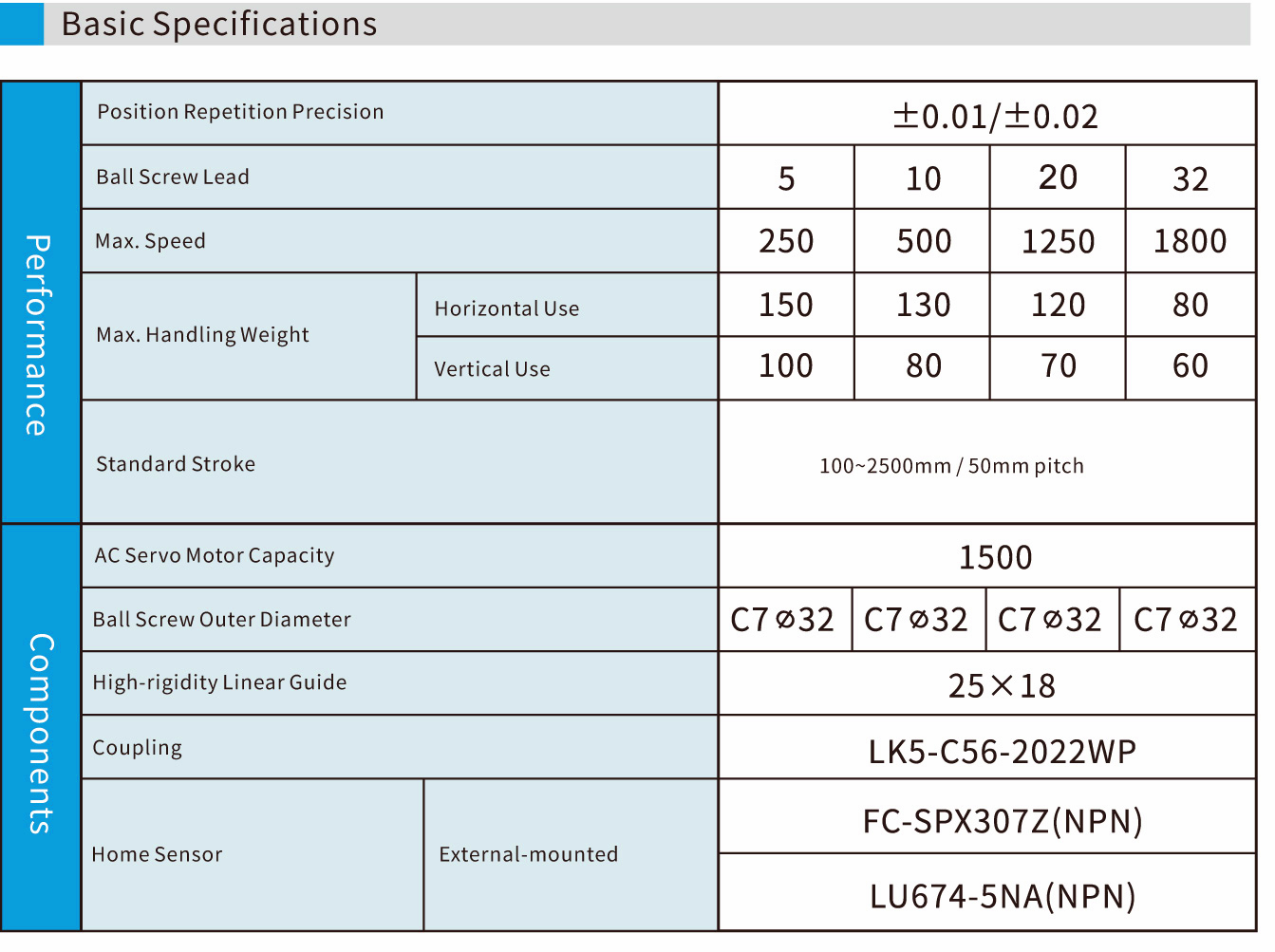

Basic Style

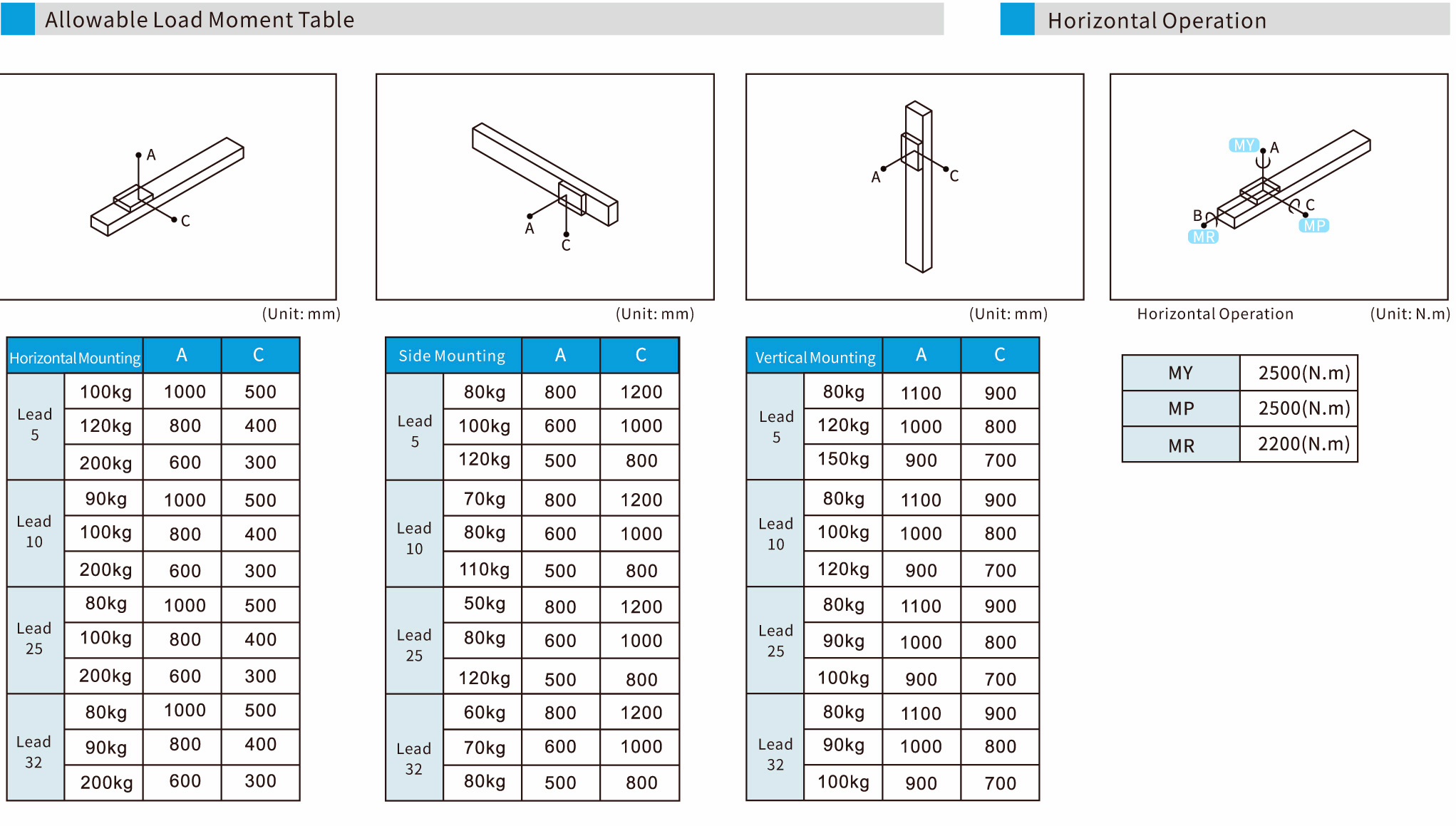

Load torque table

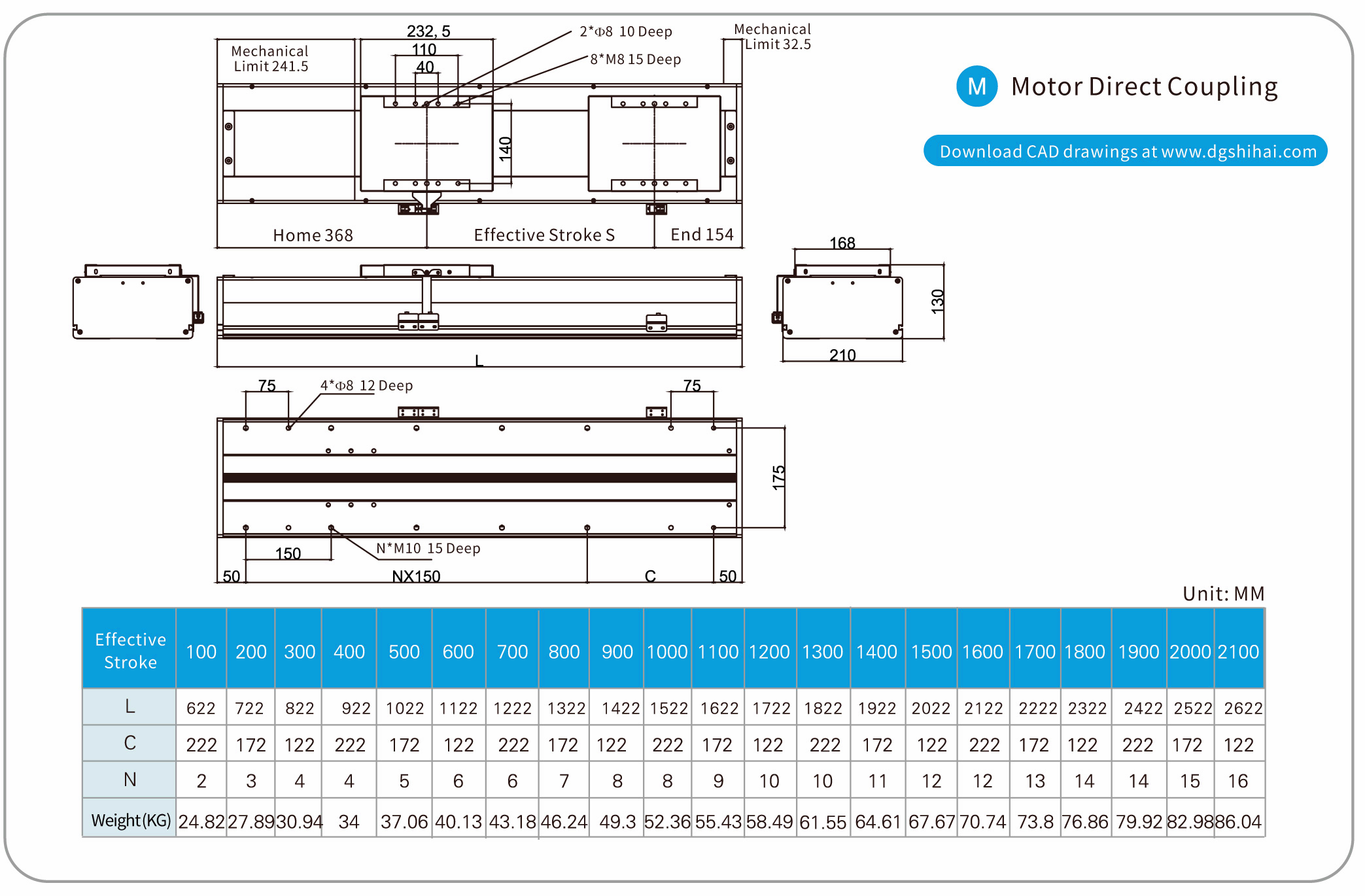

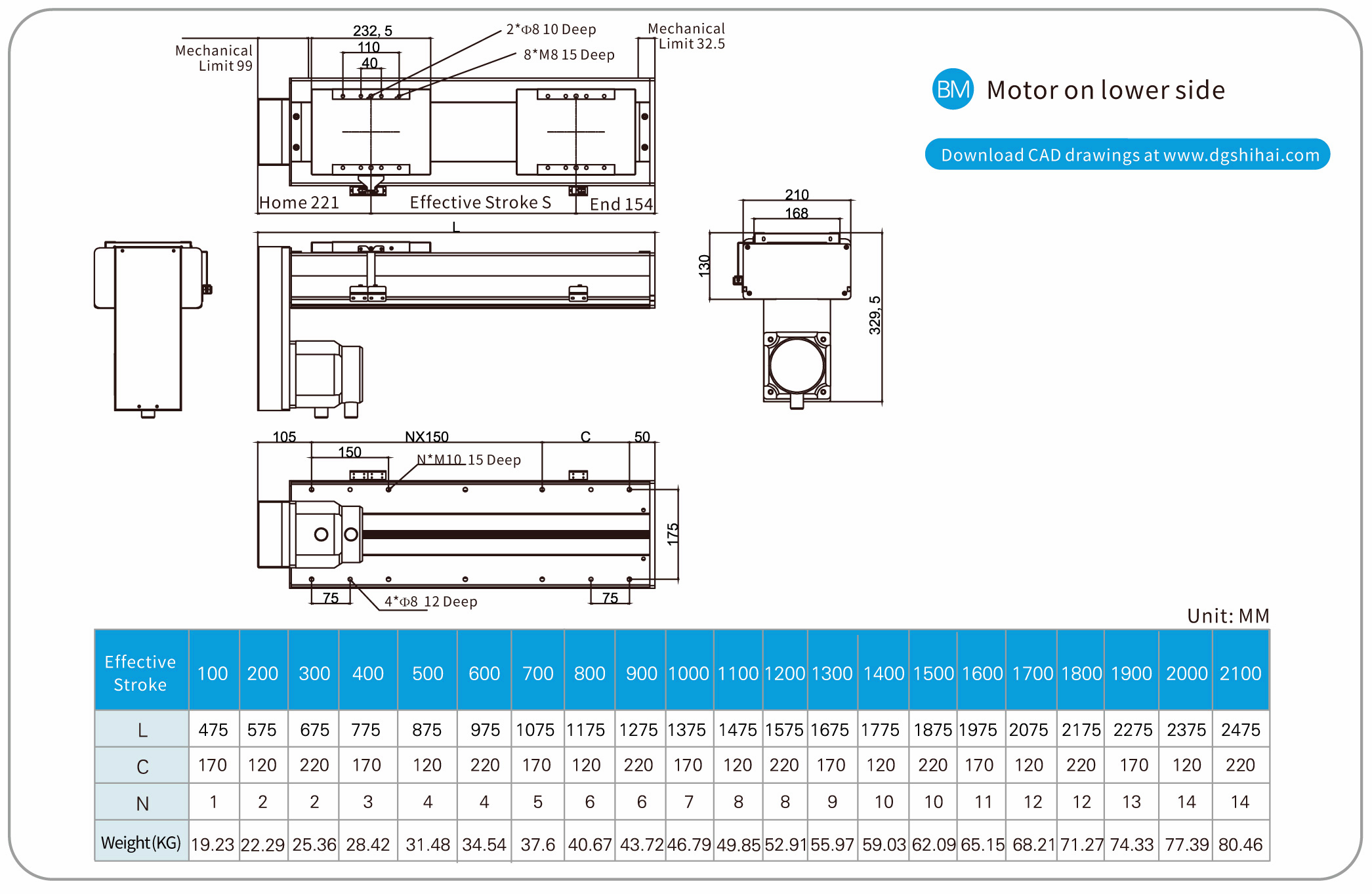

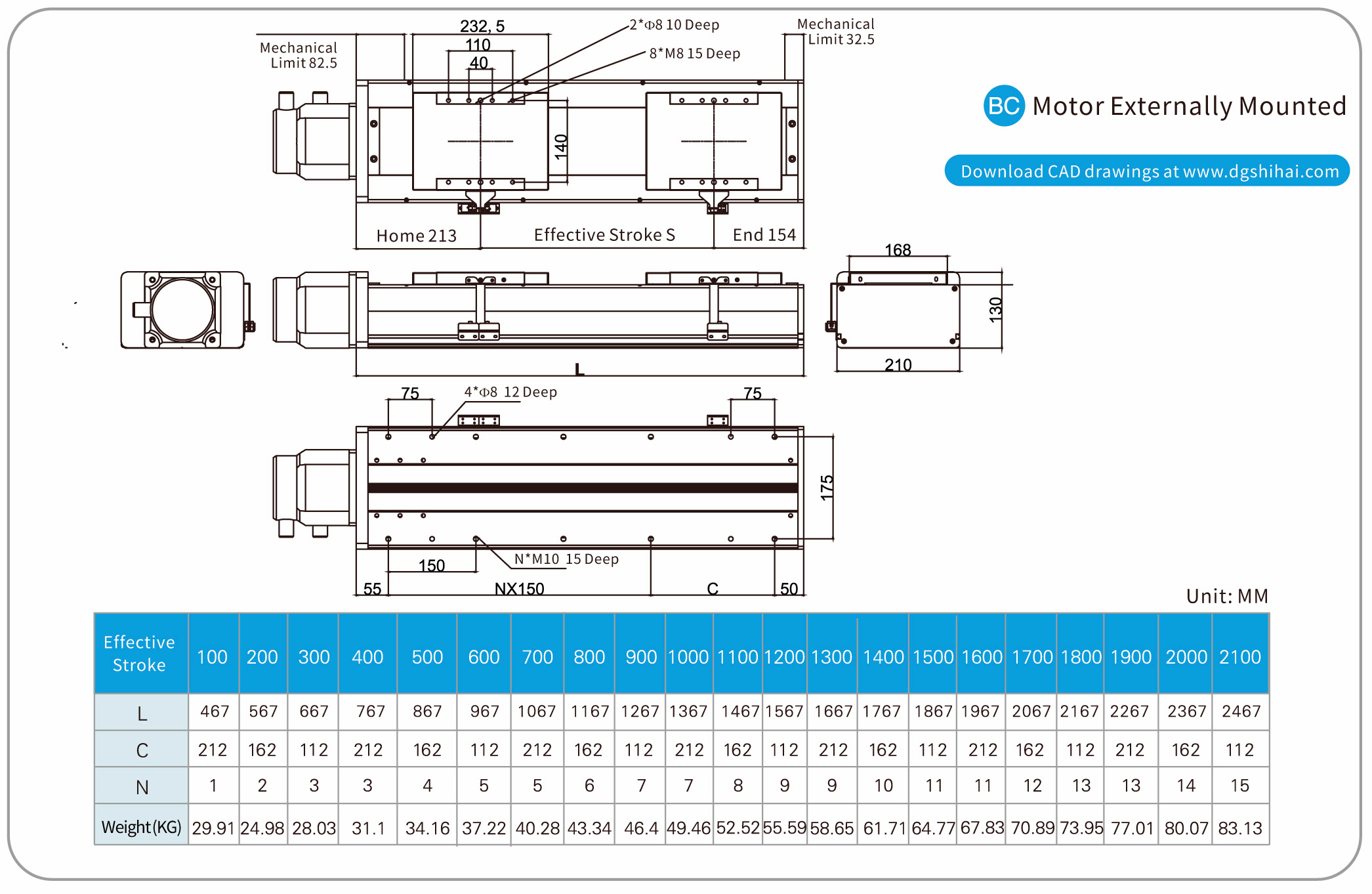

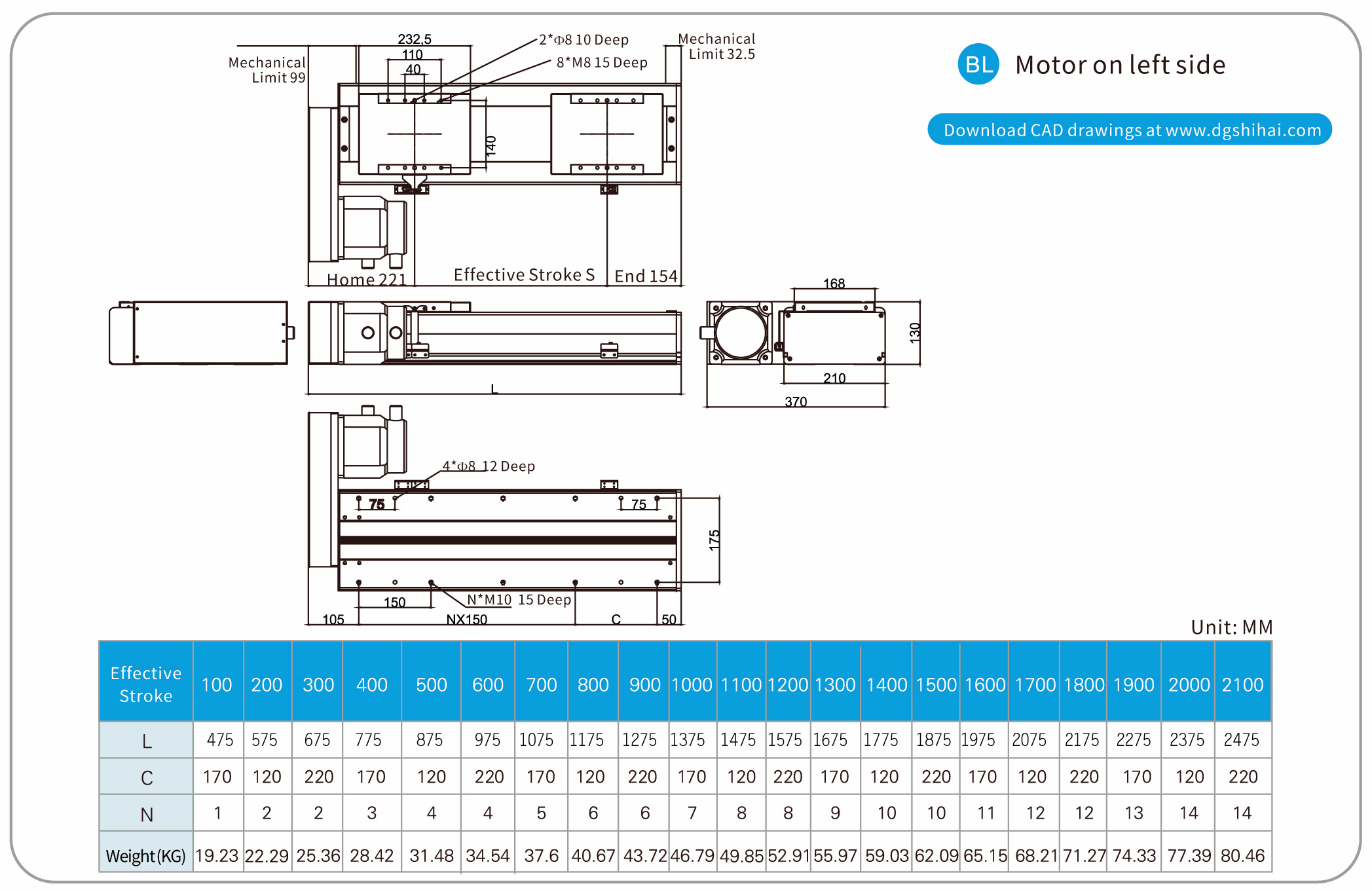

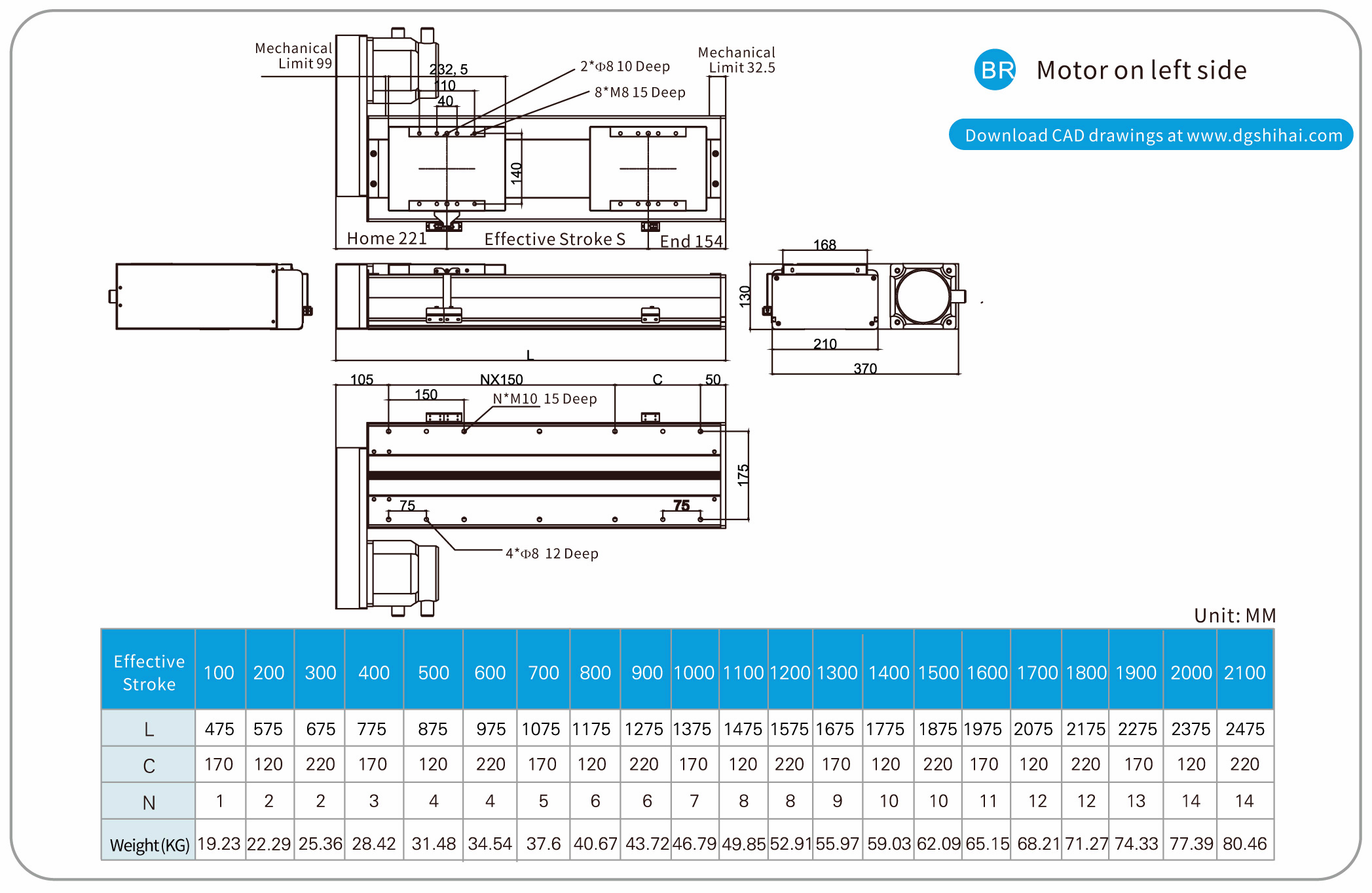

Size Chart
