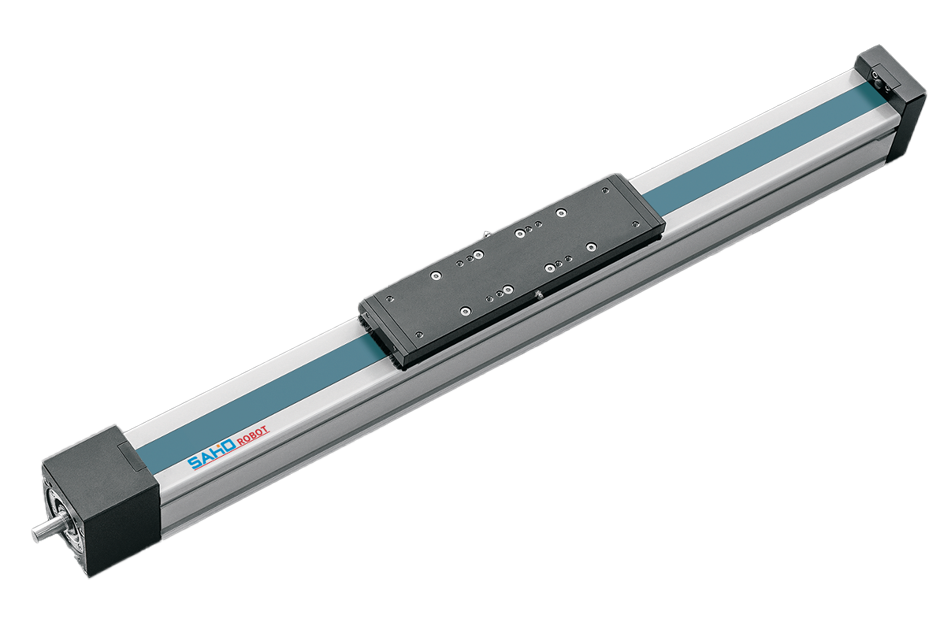

JTS80

Ball Screw Drive Actuators / Clean Room

PDF2D3D

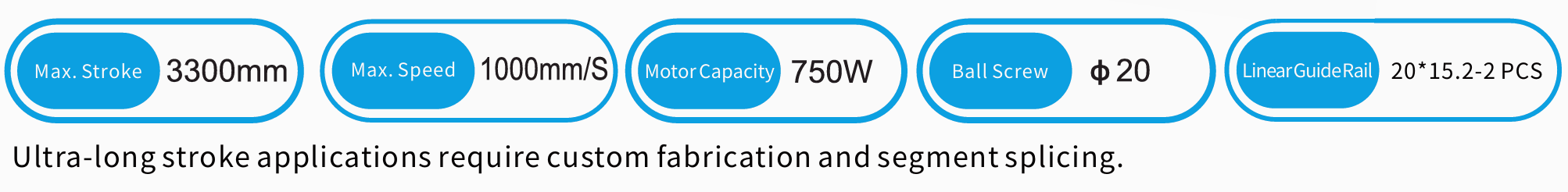

Features

Body width: 80mm

Position repeatability accuracy: ± 0.05mm

Maximum travel: 3300MM

Maximum load: 80KG

  • Product Description
  • Model Number

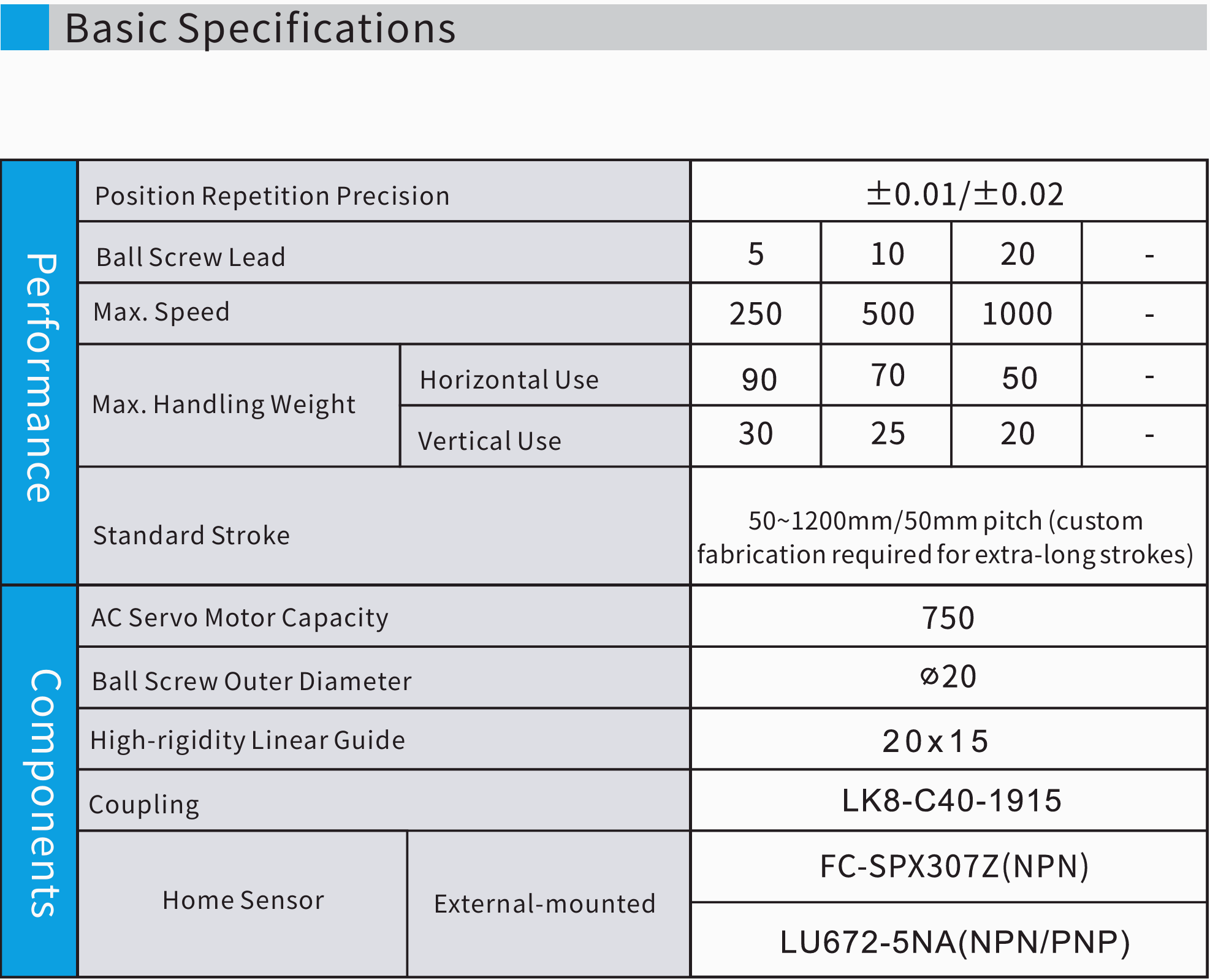

  • Basic Style
  • Load torque table
  • Size Chart
Basic Style

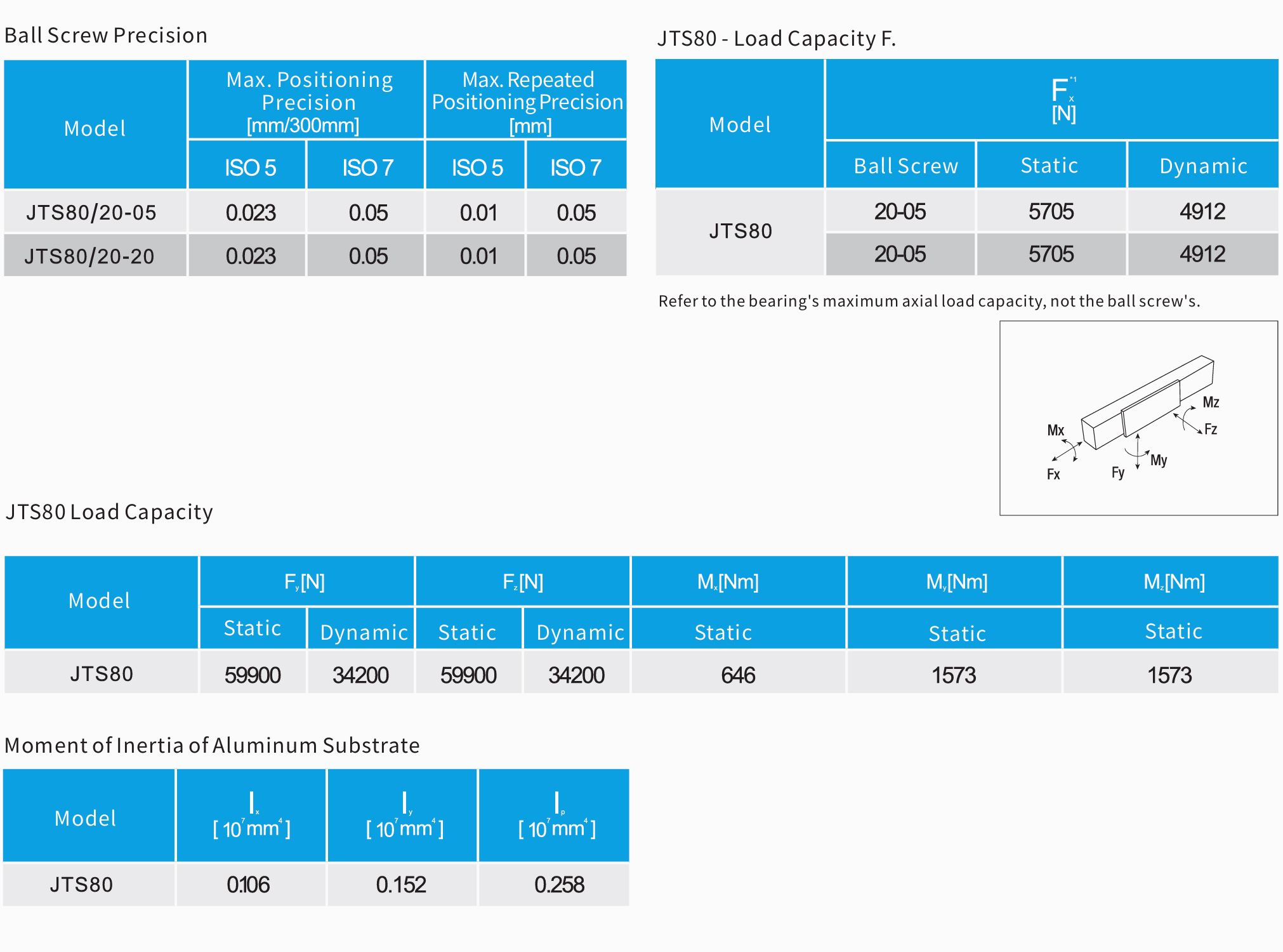

Load torque table

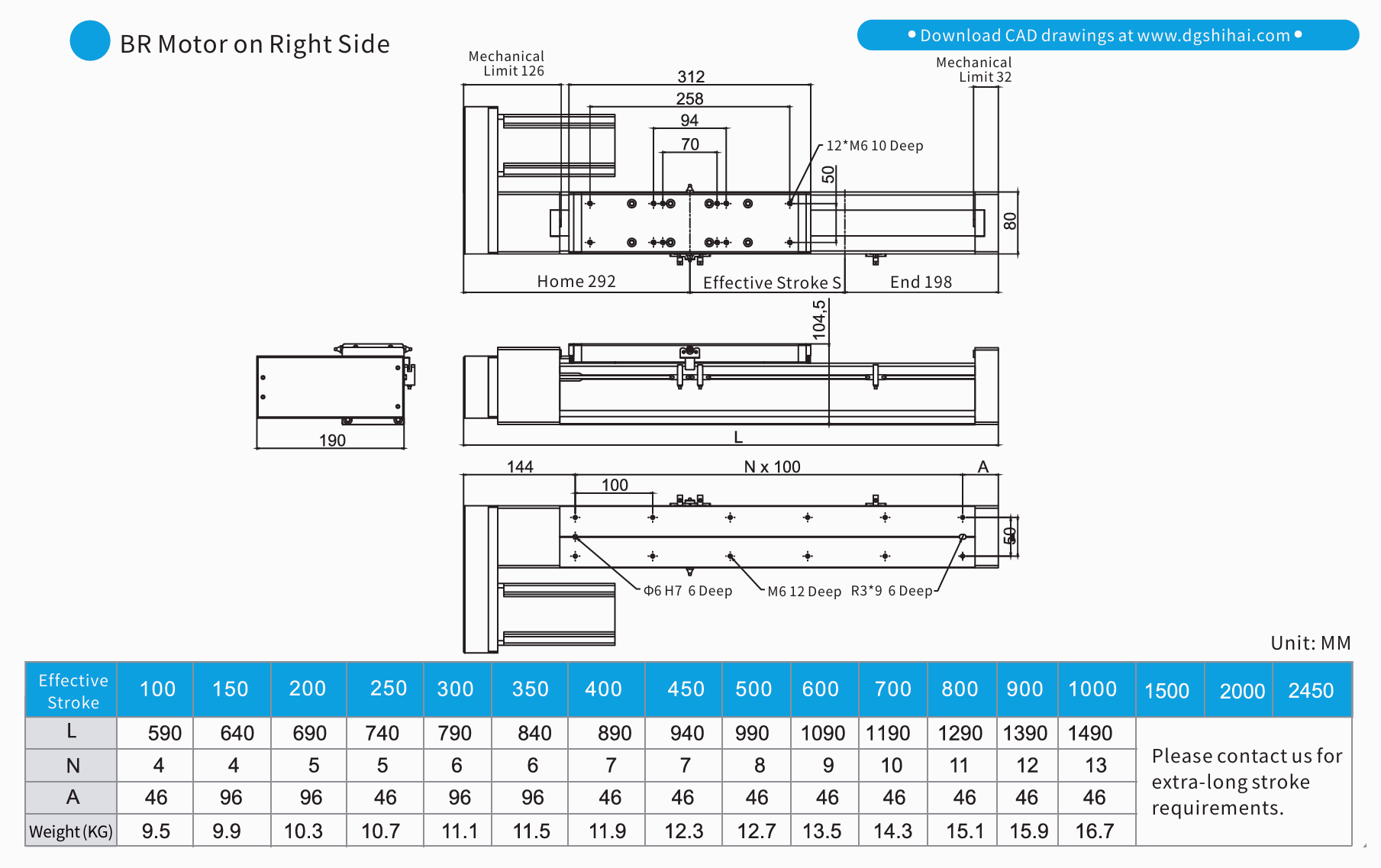

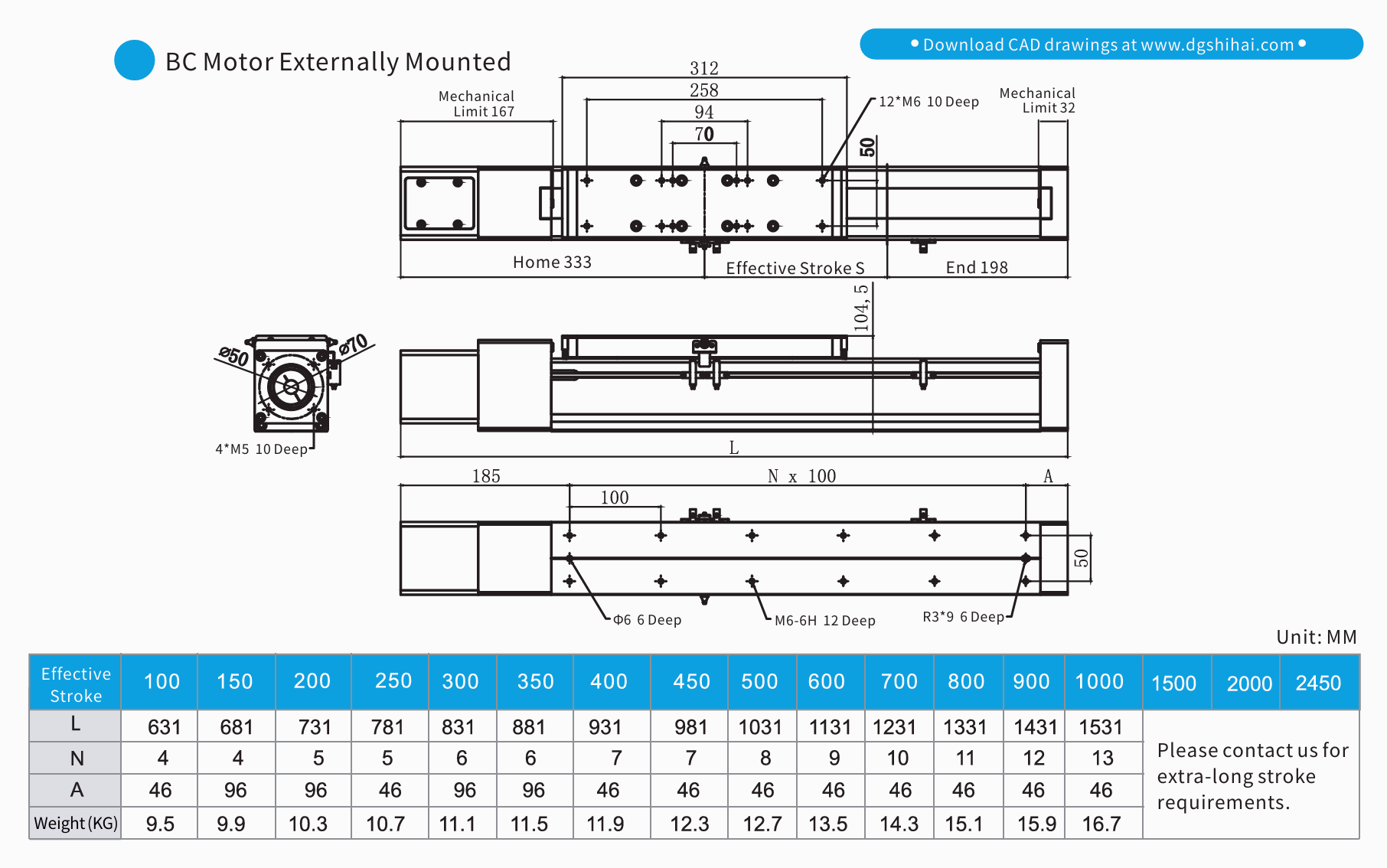

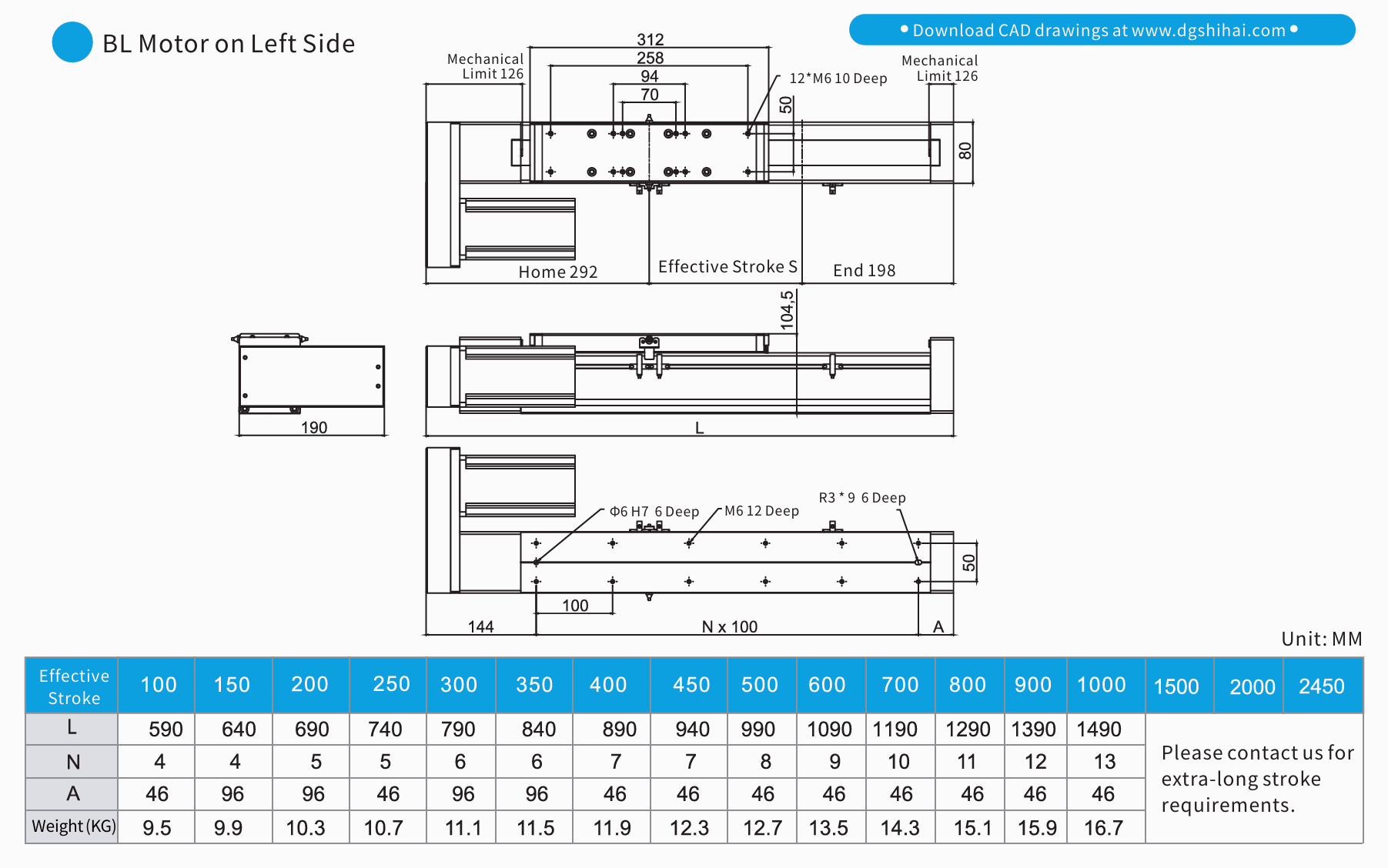

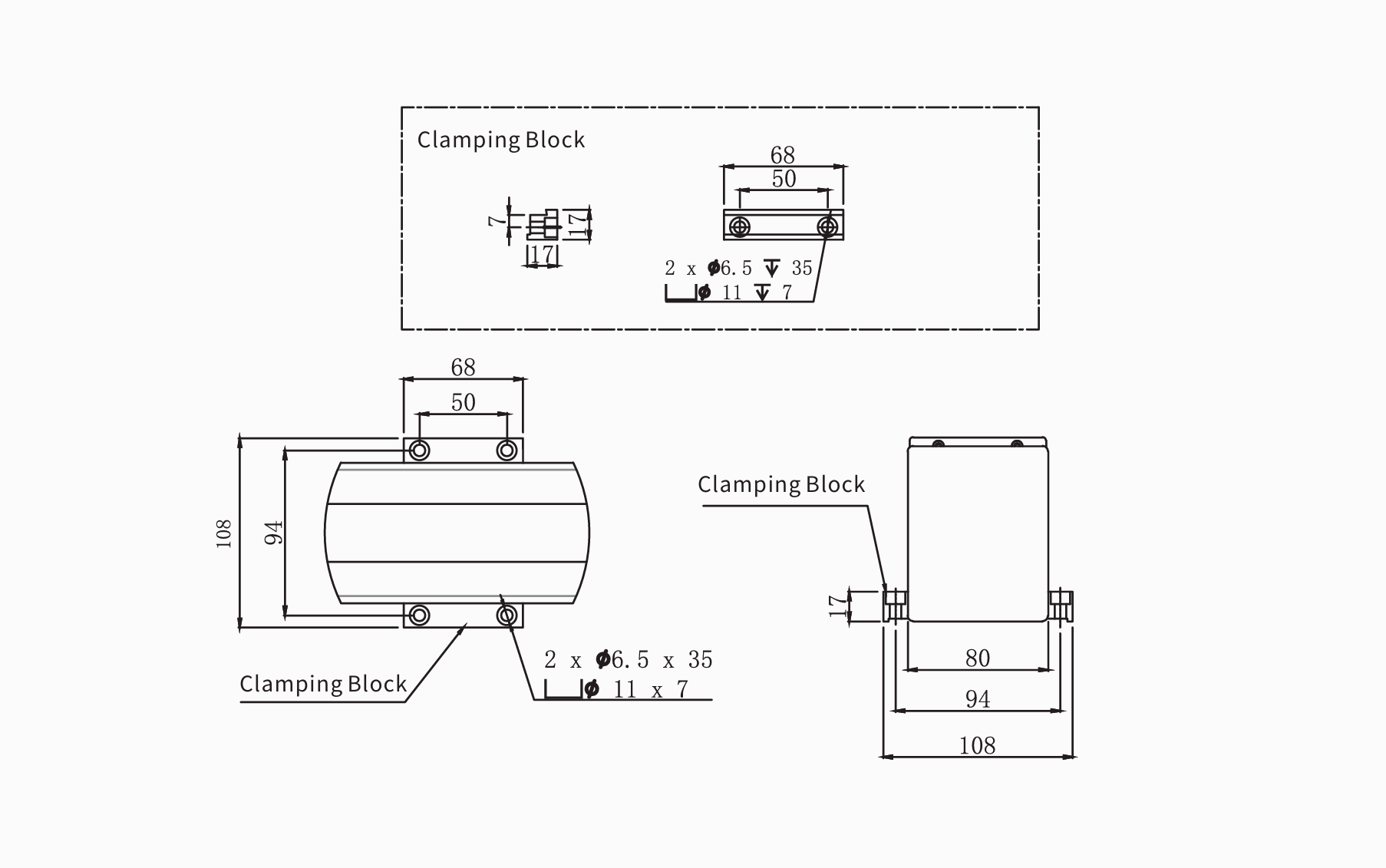

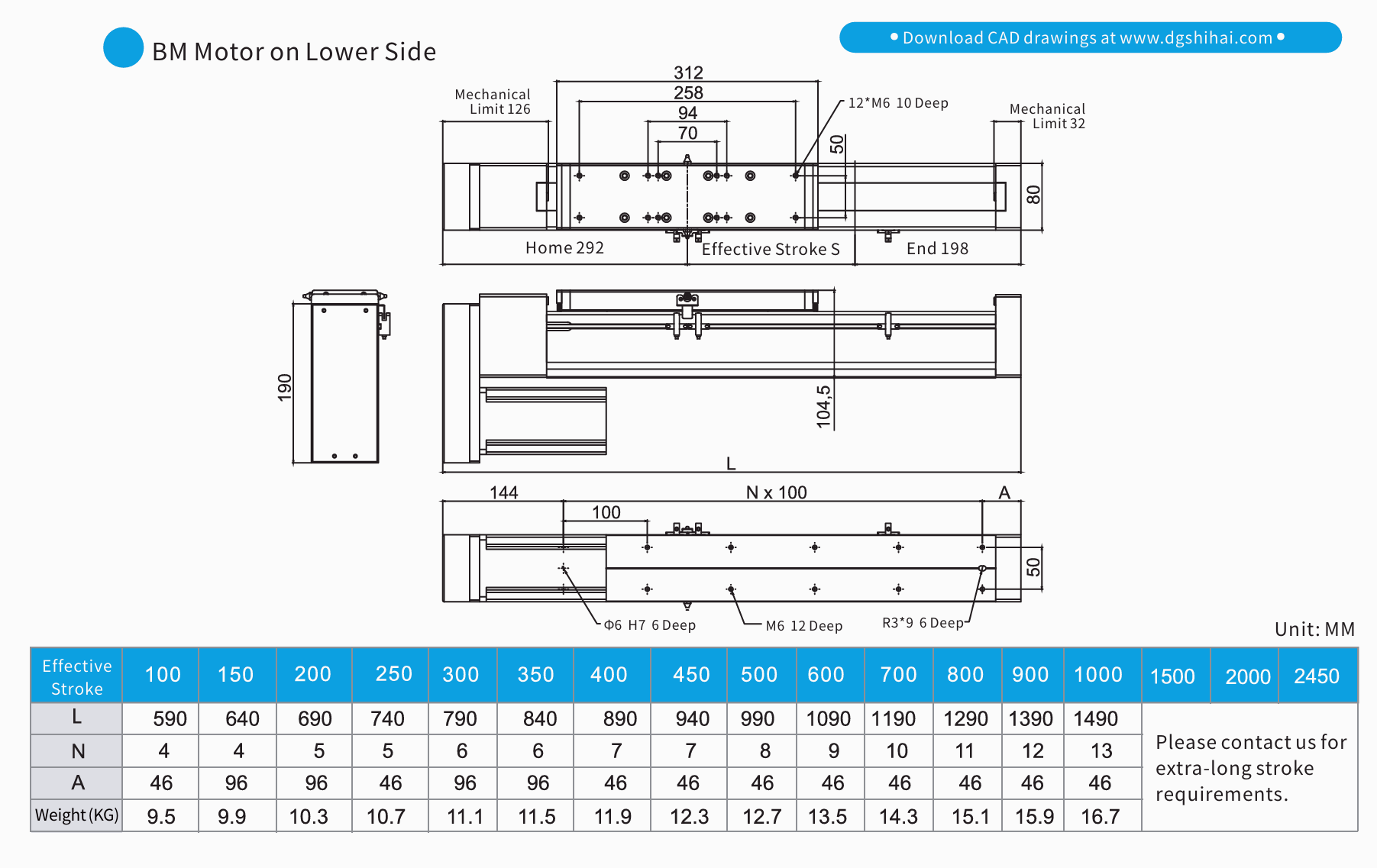

Size Chart
