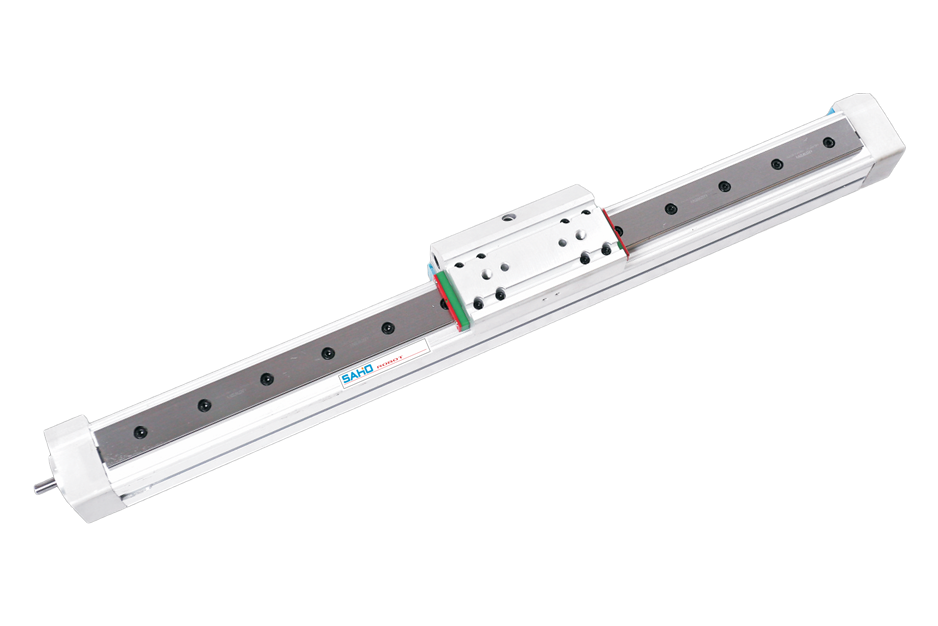

SRW45

European Standard Ball Screw Drive Series

PDF2D3D

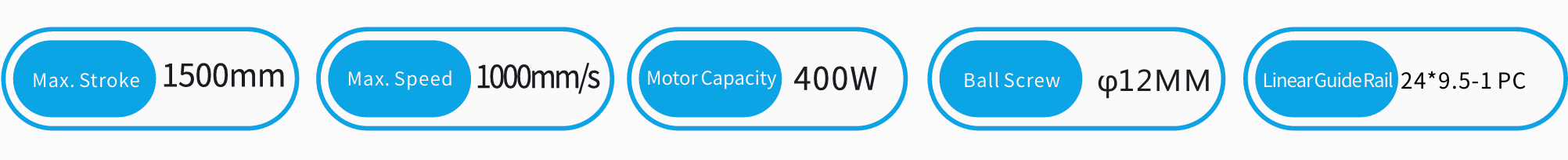

Features

Body Width: 45mm

Max. Stroke: 1050mm

Max. Payload: 15kg

  • Product Description
  • Model Number
  • Basic Style
  • Load torque table
  • Size Chart

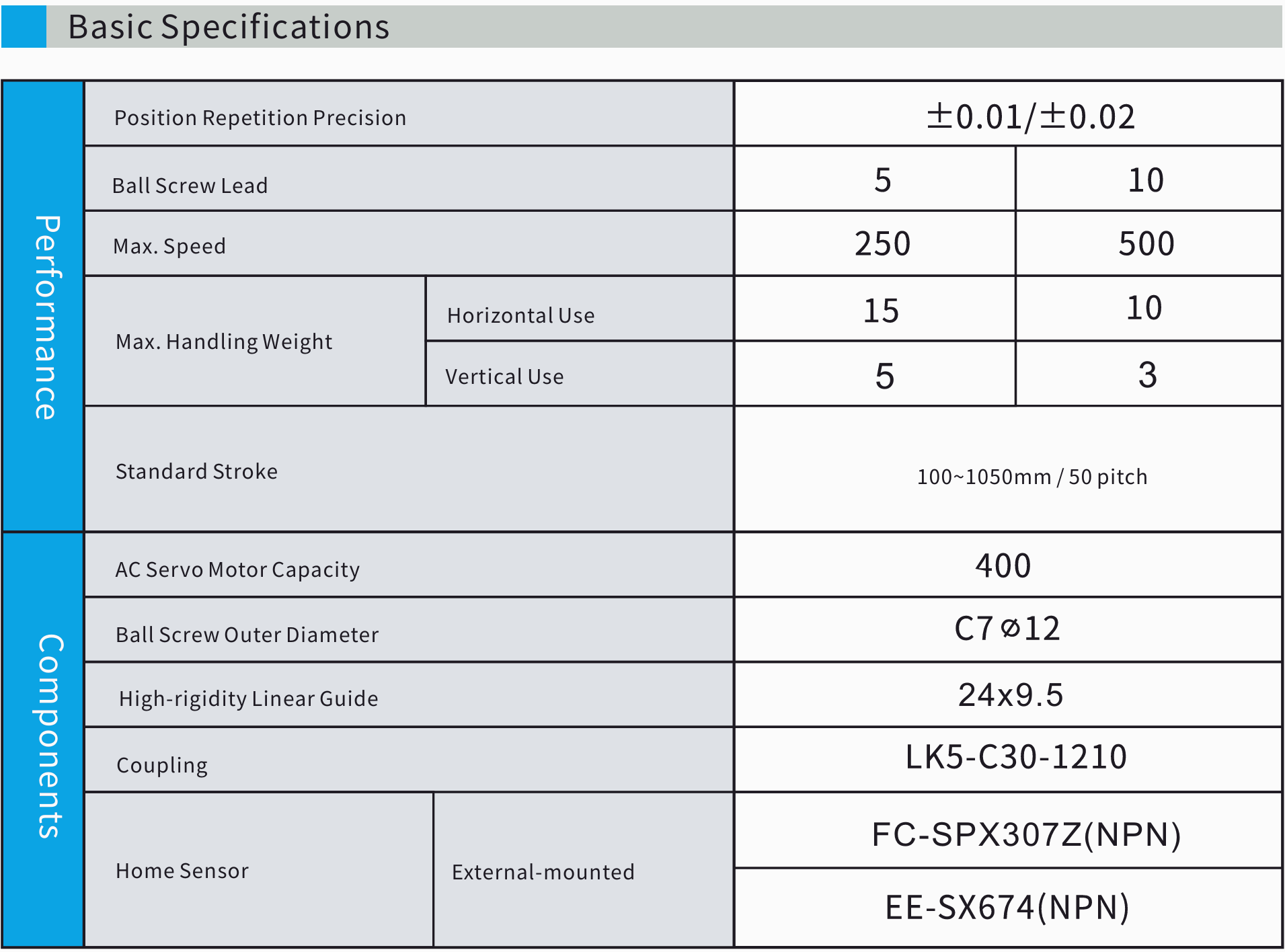

Basic Style

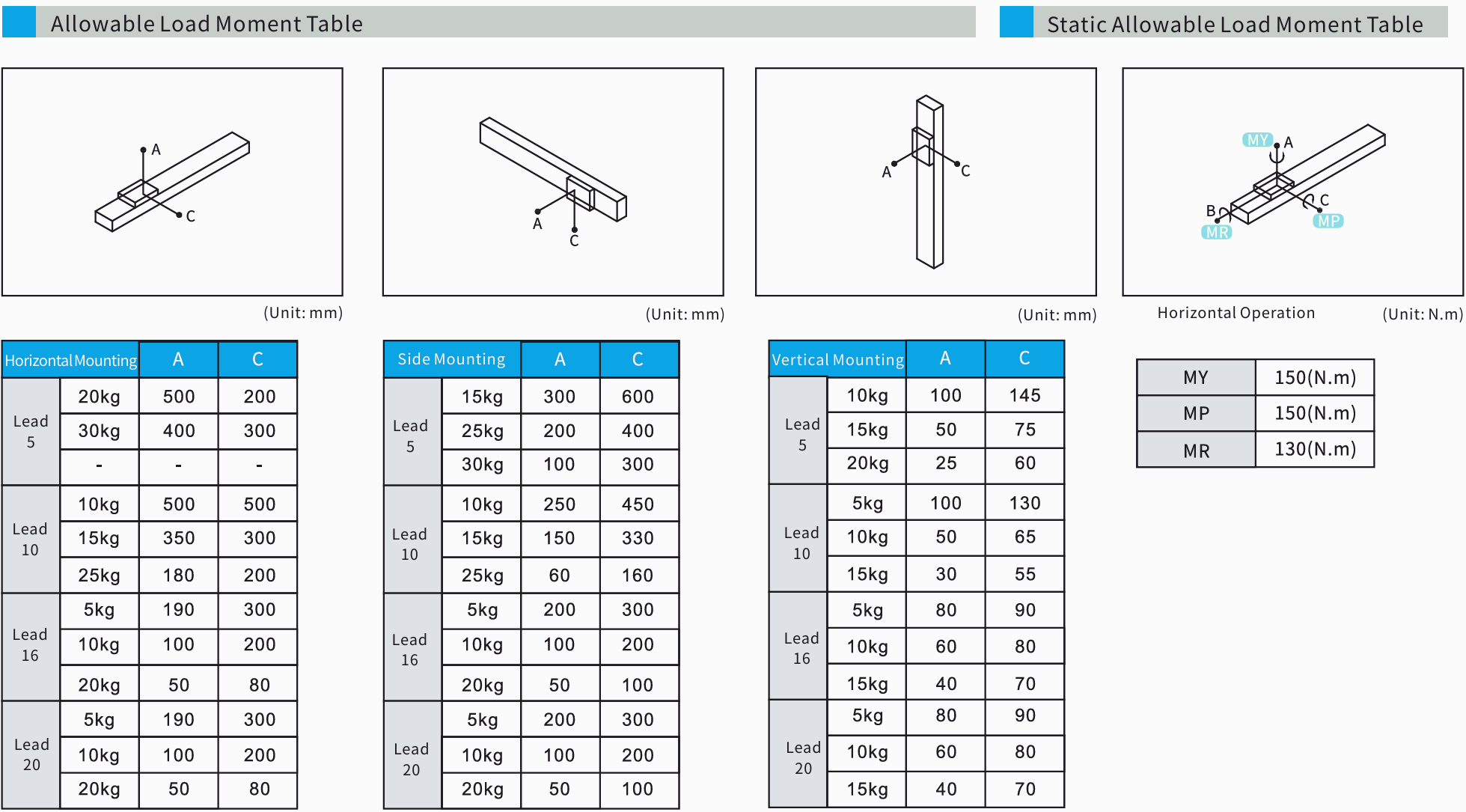

Load torque table

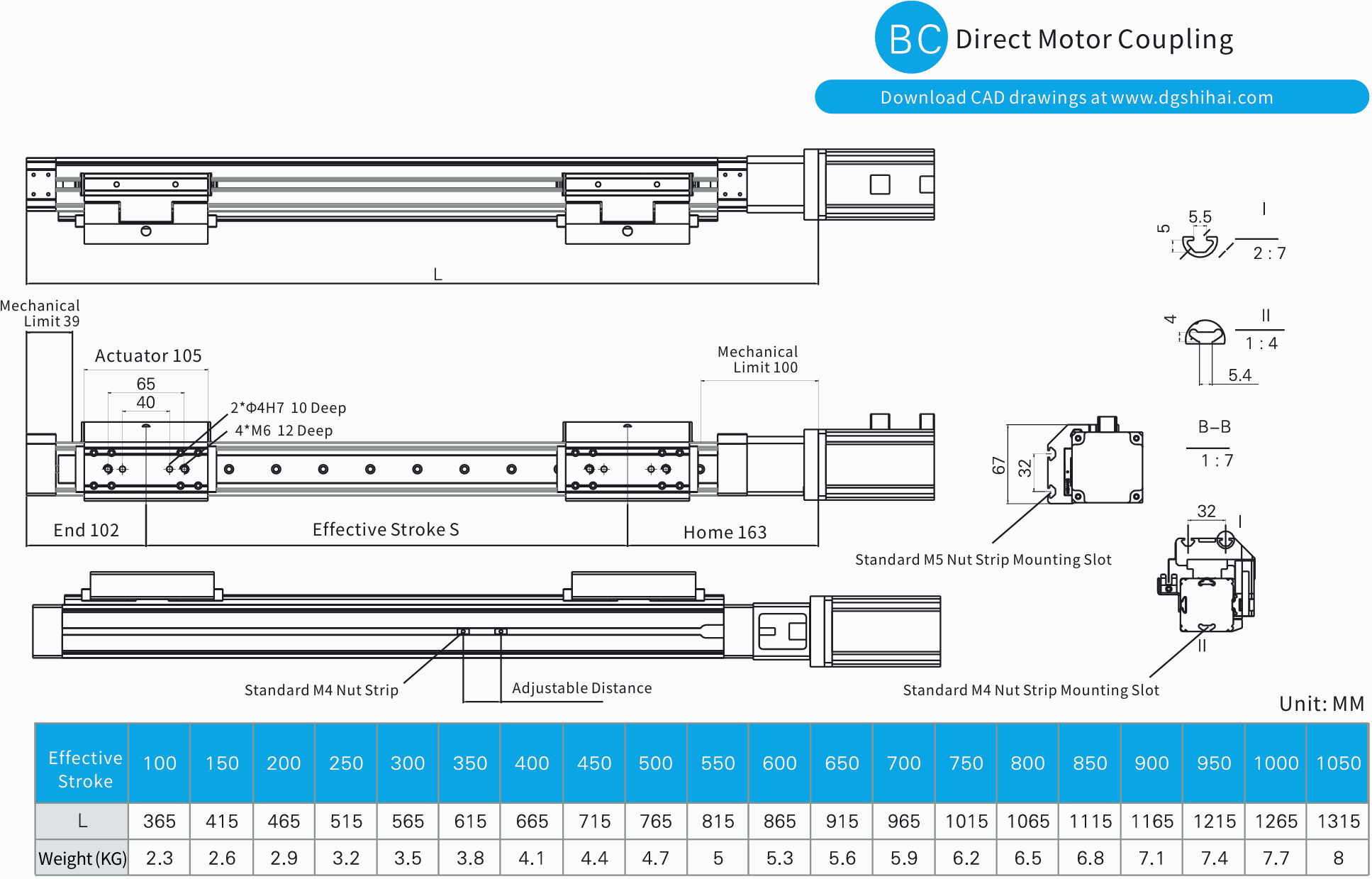

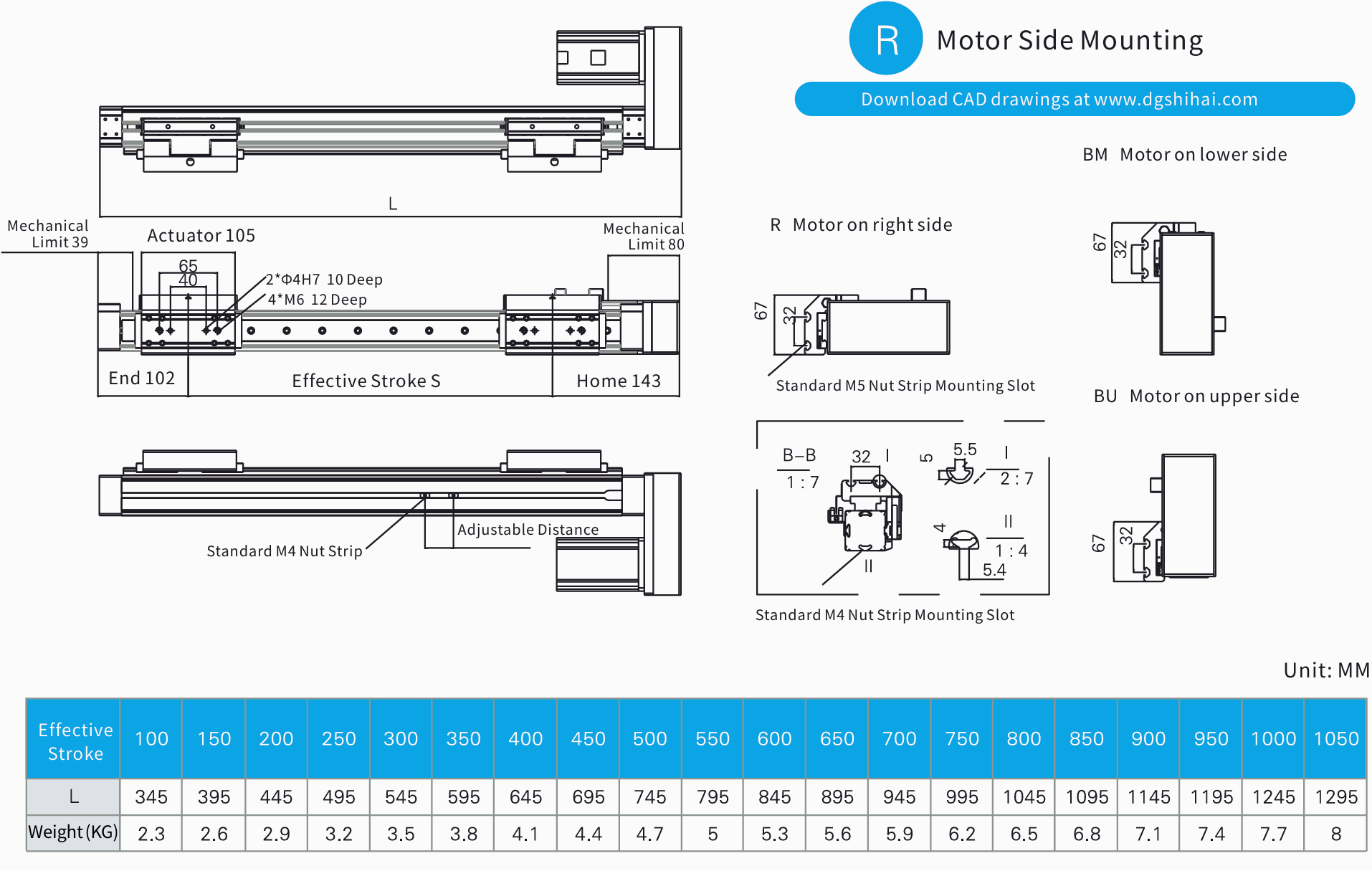

Size Chart
