ZTM45 Linear Module with 1ms vertical use load 20kg Linear Actuator for stroke 100~1500mm Rack belt electric module

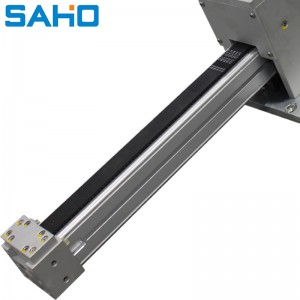

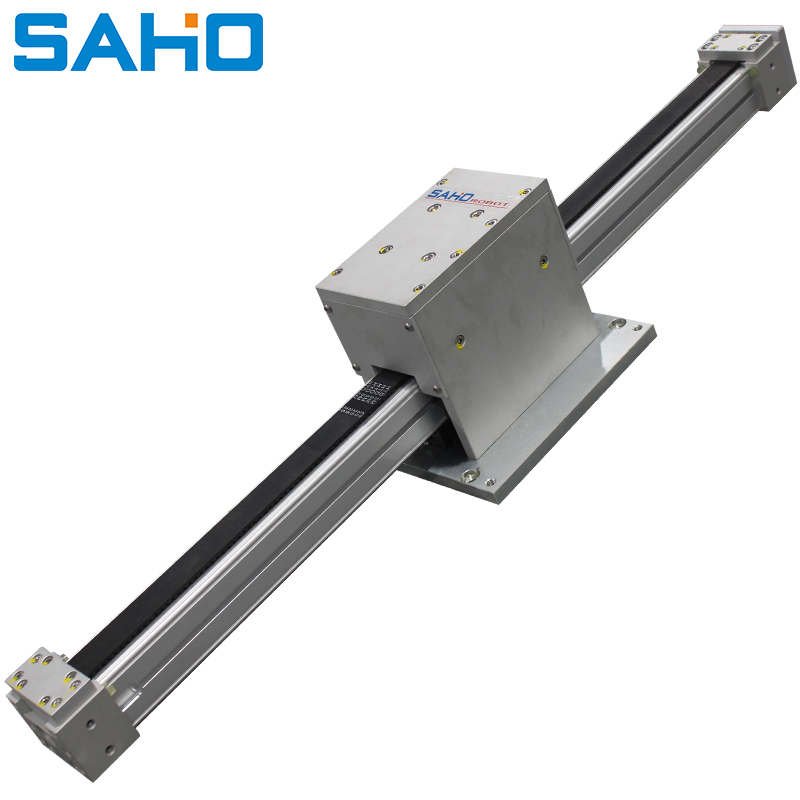

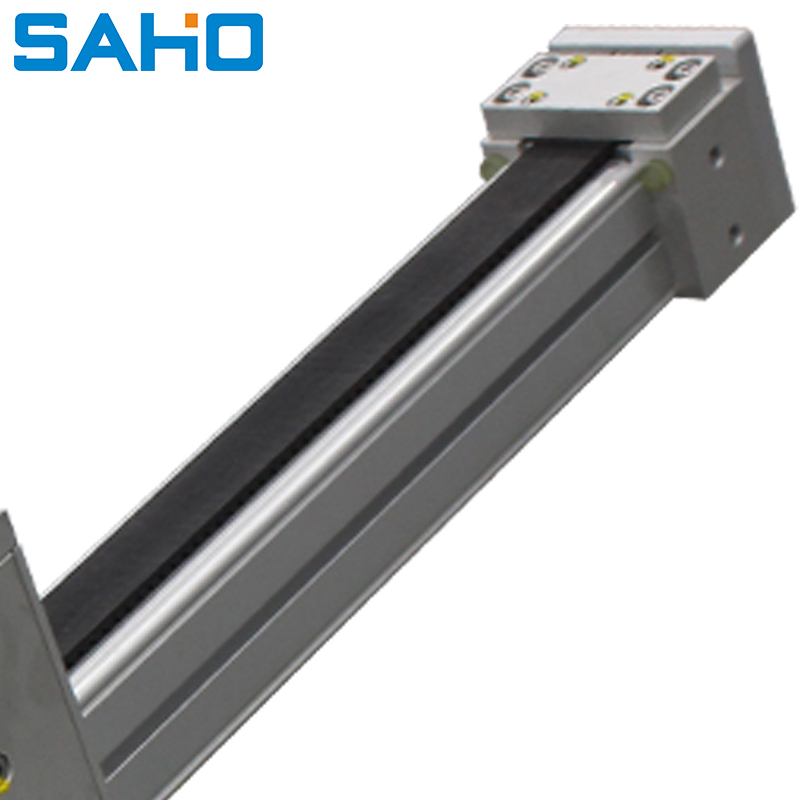

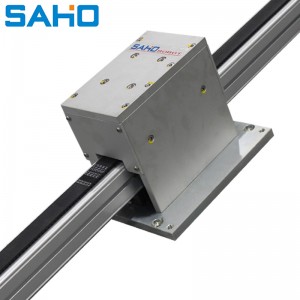

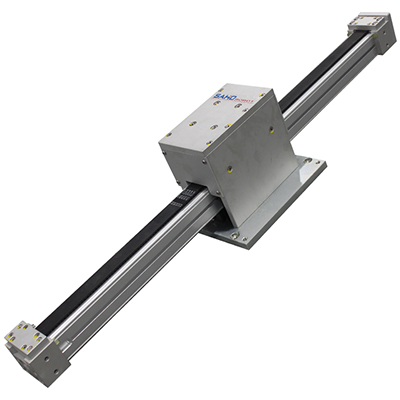

ZTM45 Rack Type Actuator
Feature1:Rack Type Actuator ZTM
Feature2:This series can support the vertical payload 20kg, and the max stroke 1500mm, the max speed 1000mm/s,which could be applied widely. And the product all can be customized, please provide the stroke,precision,speed,load weight and installation method.
OEM PRDER OEM PRODUCTION OR ODM PRDER ODM PRODUCTION
SAHO RECRUITING GLOBAL PARTNER AGENTS
1. Rack and pinion drive is a kind of transmission method that transmits the motion and power of the active sprocket with special tooth shape to the driven sprocket with special tooth shape through chain.
2. Rack transmission has many advantages, compared with belt transmission, there is no elastic sliding and slipping phenomenon, the average transmission ratio is accurate, the work is reliable and the efficiency is high; the transmission power is large, the overload capacity is strong, the transmission size is small under the same working condition; the required tension force is small, the pressure acting on the shaft is small; it can work in the high temperature, humid, dusty, polluted and other harsh environments.
